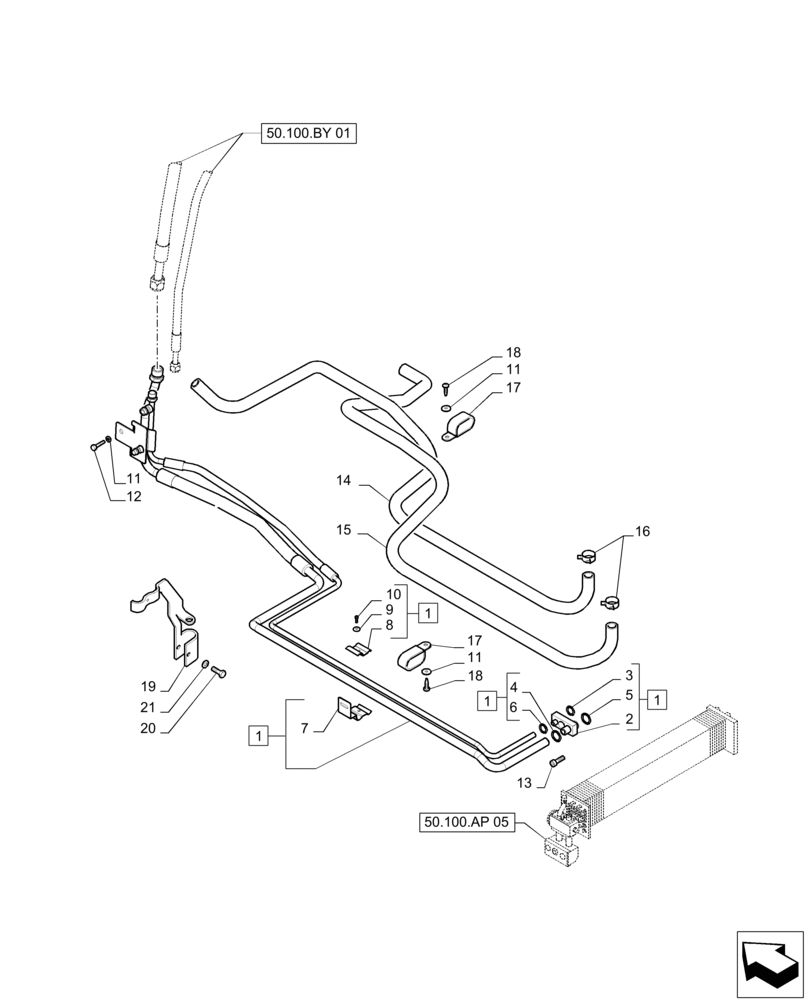

Запчасти Case IH PUMA 215 (50.100.BY[02]) - AIR CONDITIONING SYSTEM PIPES (50) - CAB CLIMATE CONTROL

1

84222772

PIPE ASSY.

Incl 2 - 10

1шт.

2

82035724

FITTING

1шт.

3

82007847

O-RING,1.8mm Thk x 6.7mm ID

1шт.

4

10319983

O-RING,1.6mm Thk x 16.1mm ID

1шт.

5

82007848

O-RING,2.4mm Thk x 13.4mm ID

1шт.

6

10318883

O-RING,8.1mm ID x 1.6mm Width

1шт.

7

87302954

BRACKET

1шт.

8

87302953

CLAMP,4.5mm HD

1шт.

9

10615279

LOCK WASHER,M4, Serr

4шт.

10

14303021

SCREW,M4 x 12mm, Cl 8.8, Full Thd

1шт.

11

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

1шт.

12

82011899

SCREW,Pan, M6 x 20mm, Cl 4.8

1шт.

13

14306421

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8

1шт.

14

87621480

A/C HOSE,15.25 mm ID x 1123.00 mm

1шт.

15

87621487

A/C HOSE,15.25 mm ID x 1140.00 mm

1шт.

16

82019905

HOSE CLAMP,22 - 26mm X 12mm

2шт.

17

82023568

CLAMP,2 Hoses

2шт.

18

82880748

SCREW,Pozidrive, Pan HD, M6 x 2 x 14mm, Cl 4.8

2шт.

19

84309191

BRACKET

1шт.

20

10902834

SCREW

1шт.

21

14498824

WASHER

1шт.
