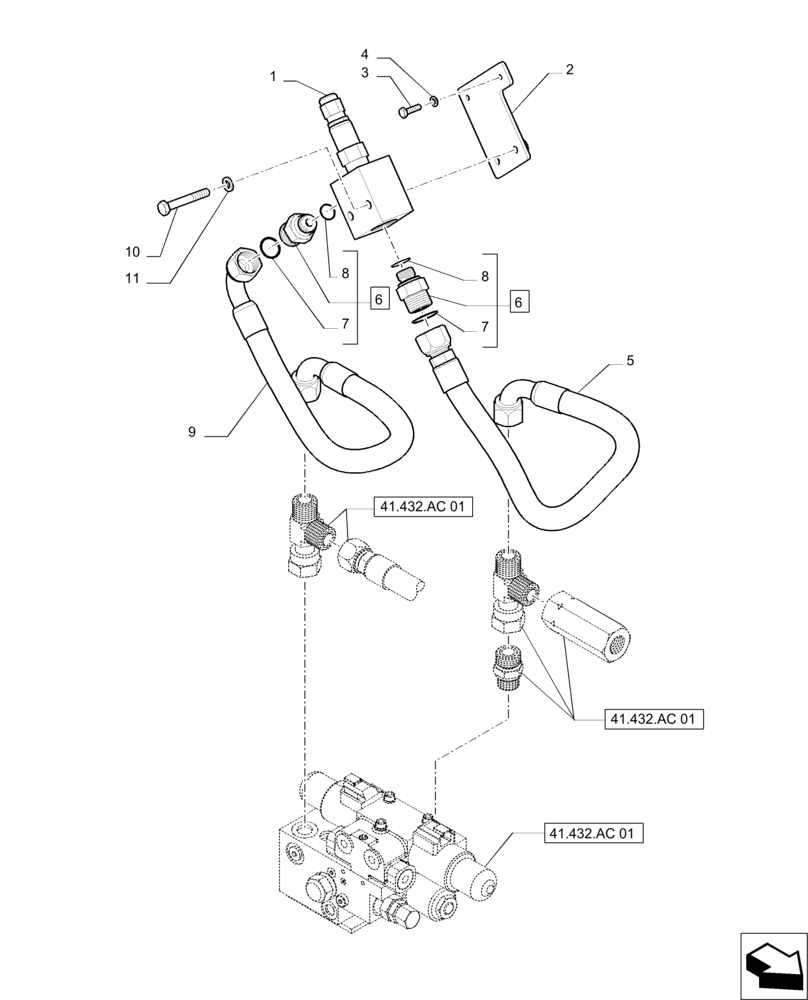

Запчасти Case IH PUMA 215 (41.432.AC[02]) - AUTO GUIDANCE SYSTEM READY - VALVES AND PIPES (41) - STEERING

1

87733695

HYDRAULIC VALVE

1шт.

2

87740932

SUPPORT

1шт.

3

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

4

10516474

LOCK WASHER

2шт.

5

87735436

HOSE ASSY.

1шт.

6

82016760

HYD CONNECTOR,1"-14 / M18 x 1.5

Incl 7, 8

2шт.

7

83901443

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

8

83999938

SEAL,15.7mm ID x 20.9mm OD x 1.5mm Thk

1шт.

9

87735437

HOSE ASSY.

1шт.

10

16044331

SCREW,Hex, M8 x 1.25 x 55mm, Cl 10.9

2шт.

11

10516679

LOCK WASHER,Helical Spring, 8.20mm ID x 14.80mm OD x 2.20mm, C72, ZNM

2шт.
