(35.104.AF[05]) - LIFTER LINES - LIFTER CYLINDERS PIPES AND REMOTE CONTROL VALVES DRAIN

Запчасти Case IH PUMA 215 (35.104.AF[05]) - LIFTER LINES - LIFTER CYLINDERS PIPES AND REMOTE CONTROL VALVES DRAIN (35) - HYDRAULIC SYSTEMS

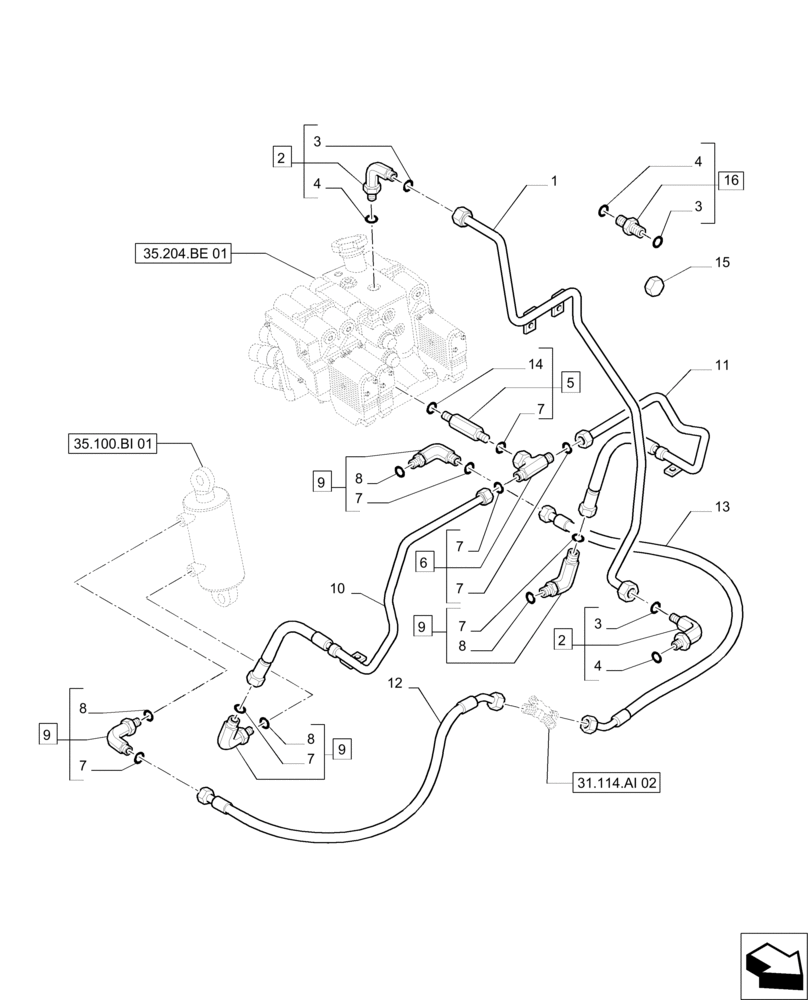

Схема запчастей Case IH PUMA 215 - (35.104.AF[05]) - LIFTER LINES - LIFTER CYLINDERS PIPES AND REMOTE CONTROL VALVES DRAIN (35) - HYDRAULIC SYSTEMS
1
9
5
8
7
2
7
7
13
9
7
9
6
8
3
2
4
4
7
16
8
3
31.114.ai 02
3
10
11
12
8
7
15
35.100.bi 01
7
14
35.204.be 01
4
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87367195

PIPE

1шт.

2

5197118

ELBOW,90 Deg, 1"3/16-12 ORFS x M27 x 2 ORB

Incl 3, 4

2шт.

3

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

3шт.

4

14438185

O-RING,24mm ID x 3mm

3шт.

5

5185048

HYD CONNECTOR

Incl 7, 14

1шт.

6

5197110

TEE,1"-14 UNS

Incl 7

1шт.

7

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

7шт.

8

14437985

O-RING,15.3mm ID x 2.4mm

4шт.

9

5185562

ELBOW

Incl 7, 8

4шт.

10

87367204

PIPE

RH

1шт.

11

87367202

PIPE

LH

1шт.

12

87316345

FLEXIBLE HOSE

RH

1шт.

13

87316344

FLEXIBLE HOSE

LH

1шт.

14

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

15

47123020

PLUG,Hex

1шт.

16

5197215

HYD CONNECTOR,1"3/16-12 ORFS x M27 x 2 ORB

Incl 3, 4

1шт.
