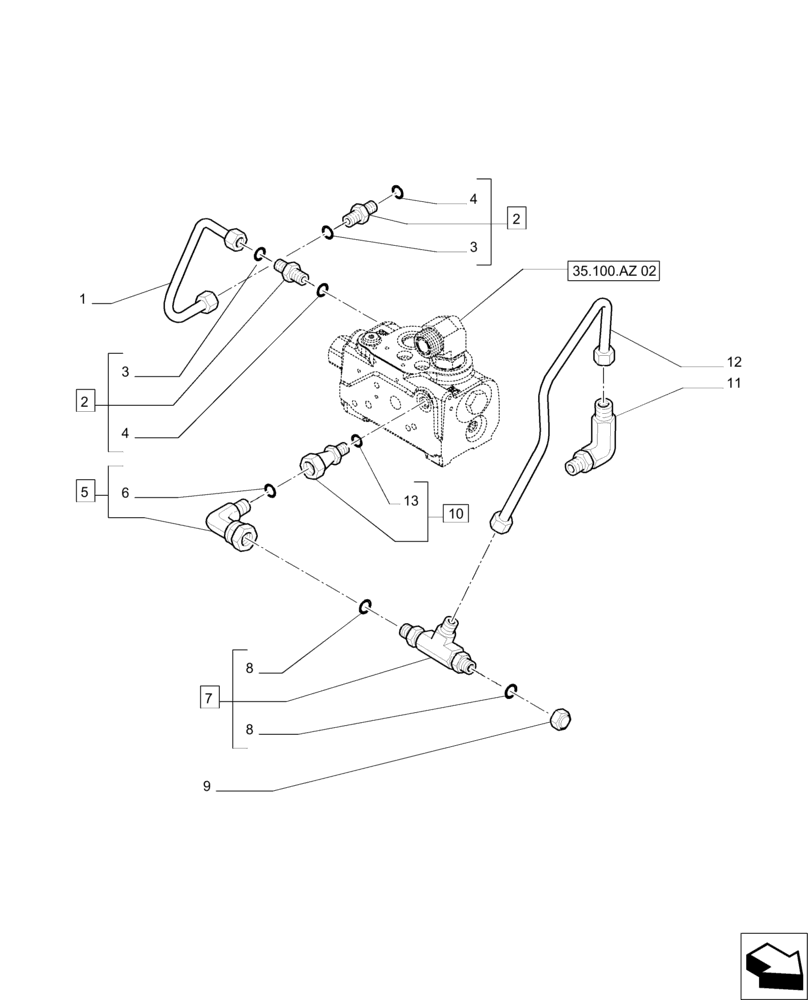

Запчасти Case IH PUMA 215 (35.104.AF[02]) - LIFTER LINES - PRIOIRITY VALVE DRAIN AND LOAD SENSE LINE (35) - HYDRAULIC SYSTEMS

1

87392512

PIPE

1шт.

2

5192291

HYD CONNECTOR,1" - 14 ORFS x M22 x 1.5 ORB

Incl 3, 4

2шт.

3

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

4

14438085

O-RING,19.3mm ID x 2.4mm

2шт.

5

82020198

ELBOW

Incl 6

1шт.

6

81844850

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

7

81862791

VALVE,9/16" - 18 ORFS x 9/16" - 18 ORFS x 9/16" - 18 ORFS

Incl 8

1шт.

8

81827528

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

9

5189973

PLUG

1шт.

10

47136376

HYD CONNECTOR

Incl 13

1шт.

11

47135296

90 ELBOW,9/16"-18 x 7/16"-20

1шт.

12

87391558

PIPE

1шт.

13

14437685

O-RING,9.30mm ID x 2.40mm

1шт.
