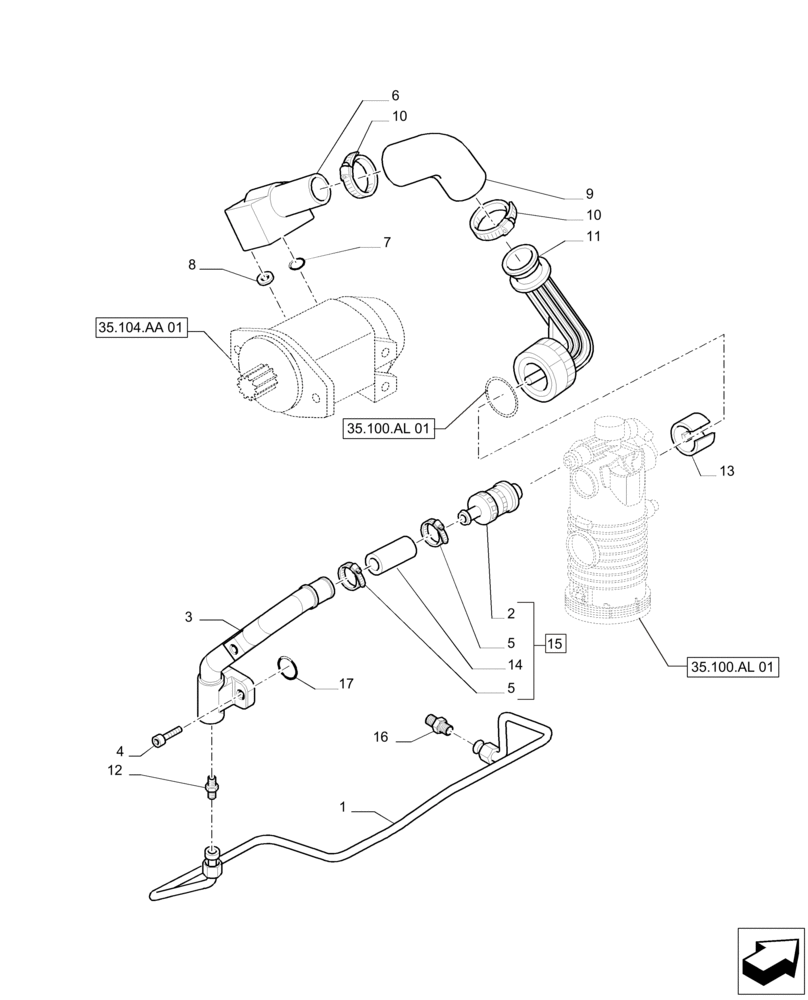

Запчасти Case IH PUMA 215 (35.104.AF[01]) - PUMPS FOR HYDRAULIC SYSTEM AND LIFT - PUMPS (35) - HYDRAULIC SYSTEMS

1

84161896

HYD TUBE,10 mm OD

1шт.

2

87381694

HYD CONNECTOR,21mm D x 22mm D

1шт.

3

84173095

HYD TUBE,23 mm ID x 25 mm OD

1шт.

4

14306421

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8

2шт.

5

82036709

HOSE CLAMP,25mm - 40mm, Worm Gear

2шт.

6

87323549

FLANGE

1шт.

7

14463680

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

1шт.

8

14306920

HEX SOC SCREW,M8 x 1.25 x 50mm, Cl 8.8, Full Thd

2шт.

9

87323539

ELBOW,90 Deg, 31mm ID x 45mm OD

1шт.

10

13001690

HOSE CLAMP,Worm Gear, 30mm/45mm x 9mm W, CST, ZND

1шт.

11

87324688

ELBOW,90 Deg, 32.9mm - 27mm ID

1шт.

12

87634393

CHECK VALVE,13/16" - 16 ORB x 13/16" - 16 ORFS

1шт.

13

87330755

STOP DEVICE

1шт.

14

87492477

HOSE

1шт.

15

87492483

HOSE,32mm Bore Dia

Incl 2, 5, 14

1шт.

16

5196844

HYD CONNECTOR

1шт.

17

14463580

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

1шт.
