Запчасти Case IH PUMA 215 (35.104.AA[04]) - 150 L/MIN PUMP W/EDC - PUMPS AND FILTER (35) - HYDRAULIC SYSTEMS

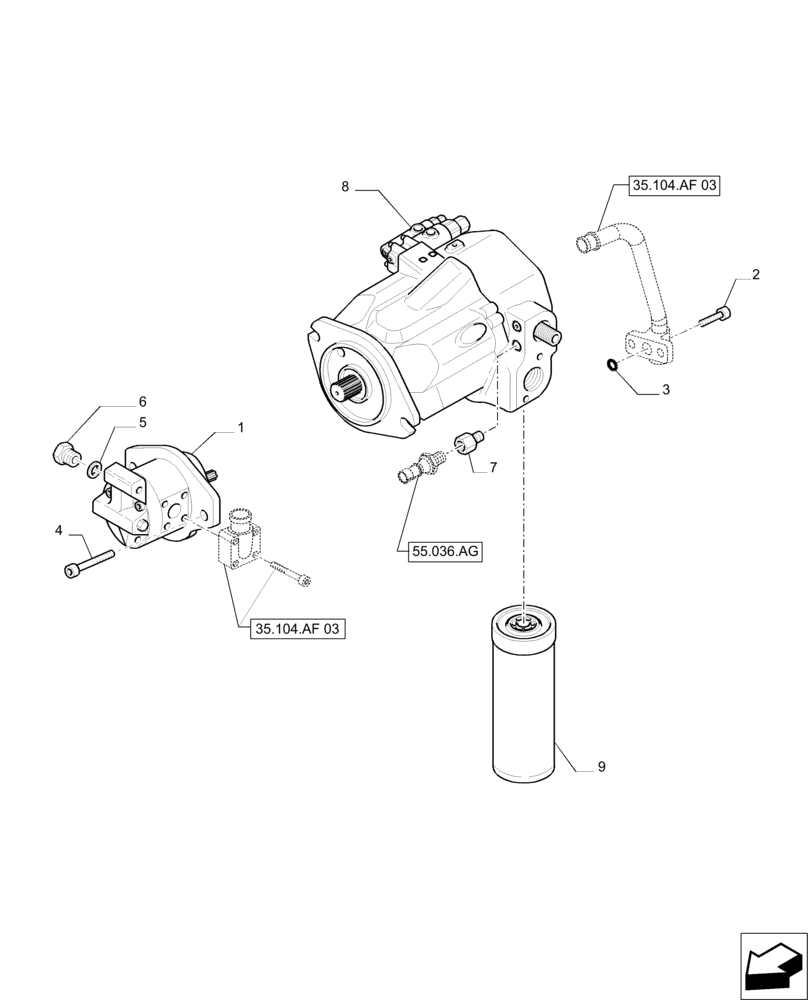

Схема запчастей Case IH PUMA 215 - (35.104.AA[04]) - 150 L/MIN PUMP W/EDC - PUMPS AND FILTER (35) - HYDRAULIC SYSTEMS
1
35.104.af 03
7
8
9
55.036.ag
35.104.af 03
3
4
6
2
5

Артикул

Название

Примечание

Количество

1

84263360

HYDRAULIC PUMP,25.67 CC

1шт.

2

14306424

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

3

14462980

O-RING,0.139" Thk x 0.796" ID, -211, Cl 5, 75 Duro

1шт.

4

14307621

HEX SOC SCREW,M10 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.

5

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

1шт.

6

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

1шт.

7

81866305

ADAPTER,1/4" NPT x M10 x 1 ORB

1шт.

8

84164102

HYDRAULIC PUMP

1шт.

9

84226263

HYDRAULIC OIL FILTER,116.8mm OD x 295.4mm L, 1" 3/8-12UNF

1шт.

Выбрано товаров: 9
