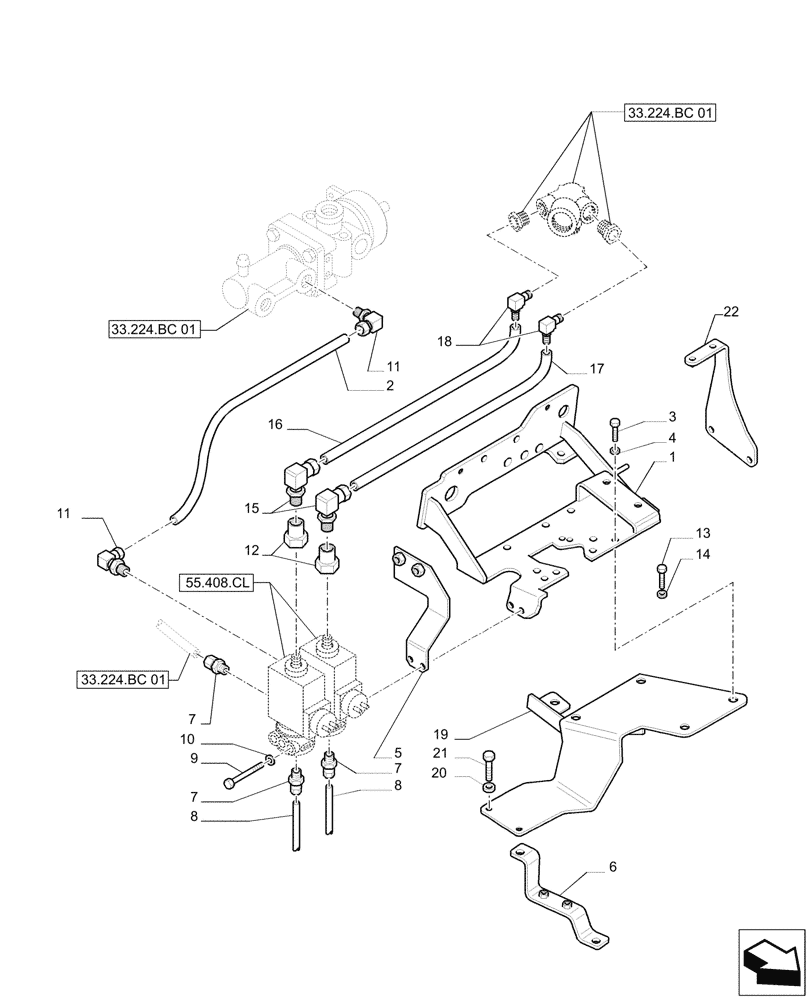

Запчасти Case IH PUMA 215 (33.224.BC[02]) - PNEUMATIC TRAILER BRAKE - CONTROL VALVE AND RELEVANT PARTS (33) - BRAKES & CONTROLS

1

84157689

SUPPORT

1шт.

2

87580708

TUBE,4 mm ID x 6 mm OD x 253 mm L

Nylon, Without Reinforcement & Without Accessories

1шт.

2

87580709

HOSE,6mm ID x 272mm L

Regulator, Solenoid

1шт.

3

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

4

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

4шт.

4

12646701

WASHER,8.15mm ID x 20mm OD x 2mm Thk

4шт.

5

84143167

SUPPORT

1шт.

6

87386980

SUPPORT

1шт.

7

82006828

ADAPTER

3шт.

8

82019793

HOSE,6.00mm OD x 70.00mm

2шт.

9

14302124

HEX SOC SCREW,M8 x 1.25 x 100mm, Cl 8.8

2шт.

10

10516679

LOCK WASHER,Helical Spring, 8.20mm ID x 14.80mm OD x 2.20mm, C72, ZNM

4шт.

11

87678126

ELBOW,Hex, M12 x 1.4 x 28mm

2шт.

12

87678127

HYD CONNECTOR,M10 x 1, M12 x 1.5

2шт.

13

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

2шт.

14

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

2шт.

15

87678122

HYD CONNECTOR,M10 x 1

2шт.

16

87677917

TUBE

1шт.

17

87677915

TUBE

1шт.

18

82036158

ELBOW,9.1mm OD x 31.5mm, 6x1Tube

2шт.

19

87385181

SUPPORT

1шт.

20

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

21

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

22

47403750

BRACKET

1шт.
