(23.314.AH[02]) - 4WD PROPELLER SHAFT - CANE VERSION

Запчасти Case IH PUMA 215 (23.314.AH[02]) - 4WD PROPELLER SHAFT - CANE VERSION (23) - FOUR WHEEL DRIVE SYSTEM

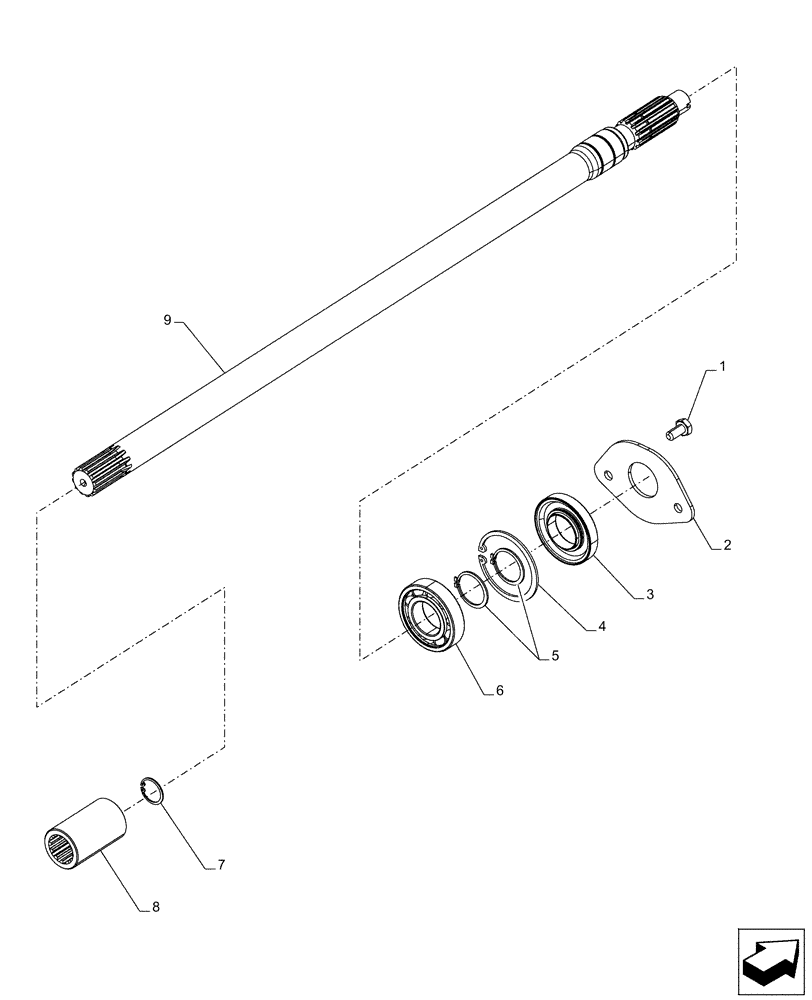

Схема запчастей Case IH PUMA 215 - (23.314.AH[02]) - 4WD PROPELLER SHAFT - CANE VERSION (23) - FOUR WHEEL DRIVE SYSTEM
9
3
6
4
8
1
2
5
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

15970624

BOLT,Hex, M10 x 1.25 x 22mm, Cl 8.8, Full Thd

2шт.

2

47135527

FLANGE

1шт.

3

47134818

SEAL,40mm ID x 80mm OD x 15mm Thk

1шт.

4

11061976

SNAP RING,M80, Int

1шт.

5

11068876

SNAP RING,M40, Ext

2шт.

6

20915780

BALL BEARING,40mm ID x 80mm OD x 18mm W

1шт.

7

11058876

SNAP RING,M30, Int

1шт.

8

5172239

SPLINED COUPLING,12T

1шт.

9

87599004

DRIVE SHAFT

1шт.
