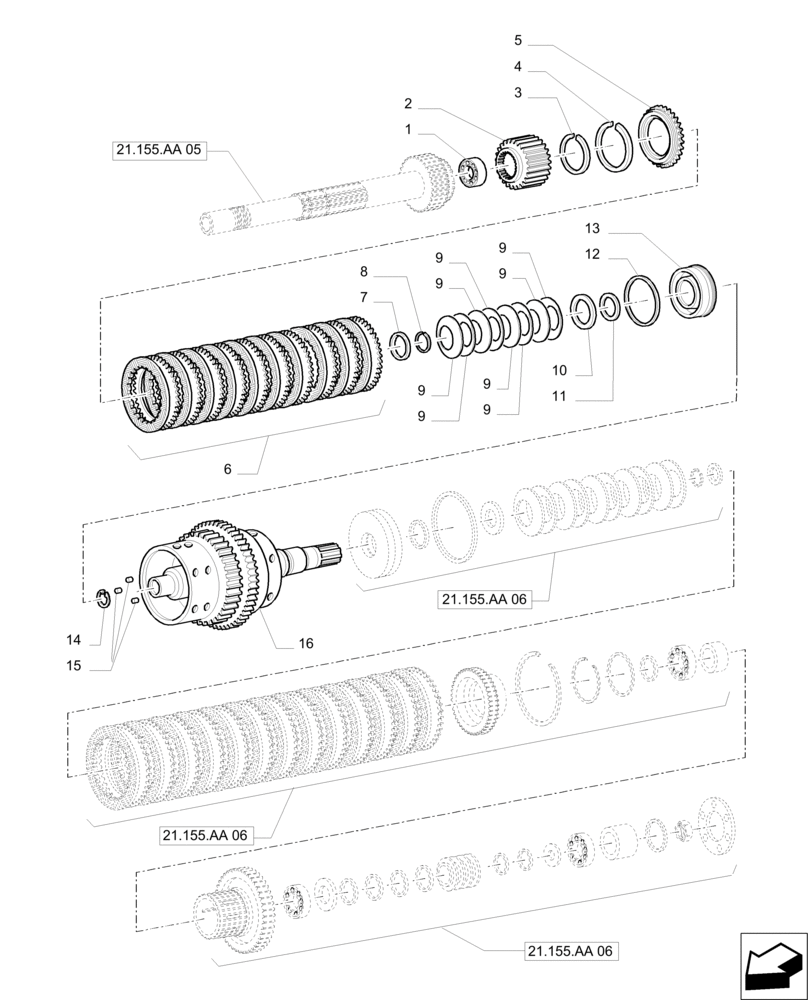

Запчасти Case IH PUMA 215 (21.155.AN[05]) - CENTRAL REDUCTION GEARS - FAST/SLOW RANGE CLUTCH (21) - TRANSMISSION

1

5172328

TAPERED BEARING,40mm ID x 75mm OD x 26mm W

1шт.

2

5172234

HUB

1шт.

3

5171953

CIRCLIP,2.5mm Thk

1шт.

4

47132782

SNAP RING,3mm Thk, Int

1шт.

5

47132780

THRUST PLATE,60T, 154.75mm OD

1шт.

6

87530793

CLUTCH PACK

1шт.

7

5164928

RETAINER CUP,60mm ID x 70mm OD x 3mm Thk

1шт.

8

5175981

CIRCLIP,1.5mm Thk

1шт.

9

87547948

BELLEVILLE SPRING,60.8mm ID x 95mm OD x 2.3mm Thk

8шт.

10

87547826

RING,61mm ID x 84.95mm OD x 3mm Thk

1шт.

11

5162252

GASKET,68mm ID x 75.5mm OD x 3.2mm Thk

1шт.

12

5138955

GASKET,134.55mm ID x 142.06mm OD x 3.2mm Thk

1шт.

13

5187425

PISTON

1шт.

14

11059076

SNAP RING,M32, Int

1шт.

15

14536590

PLUG,10.00mm Dia x 19.80mm L

3шт.

16

87312865

GEAR SHAFT

Incl 14 and 15

1шт.
