Запчасти Case IH PUMA 215 (21.155.AA[05]) - SPEED GEARS AND CLUTCHES - DRIVEN SHAFT AND “E” CLUTCH (21) - TRANSMISSION

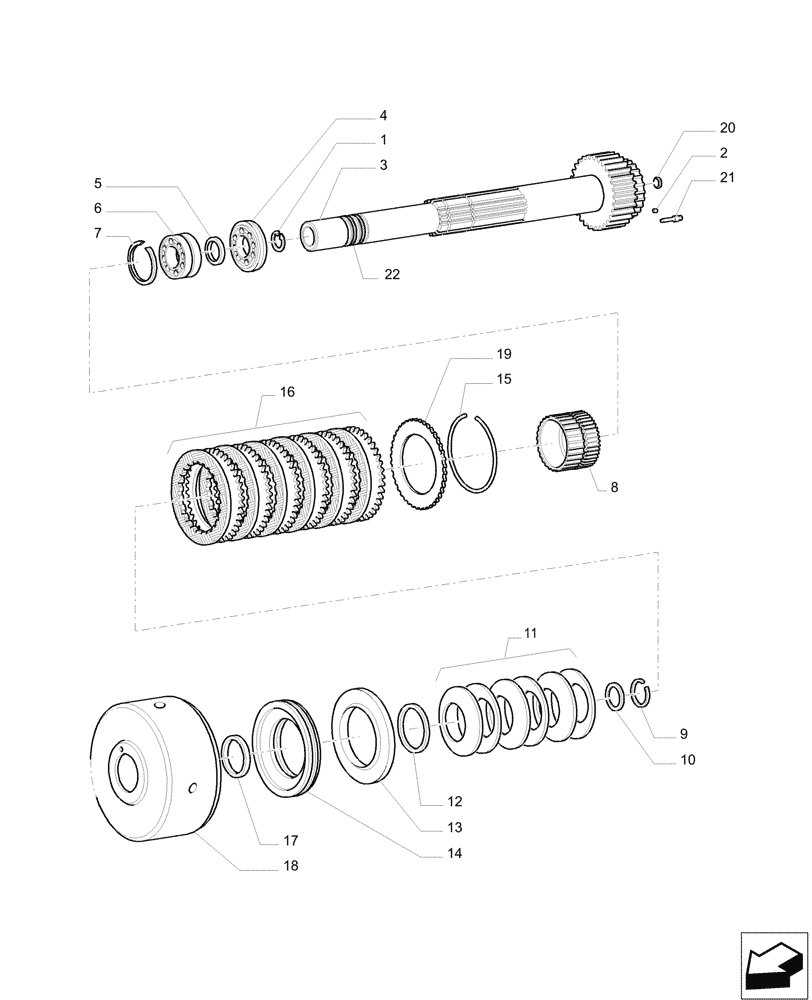

Схема запчастей Case IH PUMA 215 - (21.155.AA[05]) - SPEED GEARS AND CLUTCHES - DRIVEN SHAFT AND “E” CLUTCH (21) - TRANSMISSION
7
22
19
14
13
1
6
5
8
11
10
21
12
20
2
15
16
3
4
18
9
17

Артикул

Название

Примечание

Количество

1

11059076

SNAP RING,M32, Int

1шт.

2

5162260

PLUG,Round, 10.5mm OD

3шт.

3

5183138

SHAFT

1шт.

4

5138418

TAPERED BEARING,50mm ID x 110mm OD x 29.25mm W

1шт.

5

5162261

SPACER,50.1mm ID x 60mm OD x 4mm L

1шт.

6

5162622

BALL BEARING,50mm ID x 80mm OD x 32mm W

1шт.

7

5162623

CIRCLIP,80mm ID

1шт.

8

87553312

PINION

1шт.

9

5175981

CIRCLIP,1.5mm Thk

1шт.

10

5164928

RETAINER CUP,60mm ID x 70mm OD x 3mm Thk

1шт.

11

87547947

SPRING,Belleville, 60mm ID x 1.9mm Thk

6шт.

12

87547826

RING,61mm ID x 84.95mm OD x 3mm Thk

1шт.

13

5138955

GASKET,134.55mm ID x 142.06mm OD x 3.2mm Thk

1шт.

14

87547824

PISTON

1шт.

15

47132782

SNAP RING,3mm Thk, Int

1шт.

16

87530788

CLUTCH PACK

1шт.

17

5162252

GASKET,68mm ID x 75.5mm OD x 3.2mm Thk

1шт.

18

47132801

HOUSING

1шт.

19

47132780

THRUST PLATE,60T, 154.75mm OD

1шт.

20

5179204

PLUG,20.27mm OD x 6.38mm W

1шт.

21

14536590

PLUG,10.00mm Dia x 19.80mm L

3шт.

22

14454781

O-RING,0.07" Thk x 1.614" ID, -30, Cl 7, 75 Duro

1шт.

Выбрано товаров: 22
