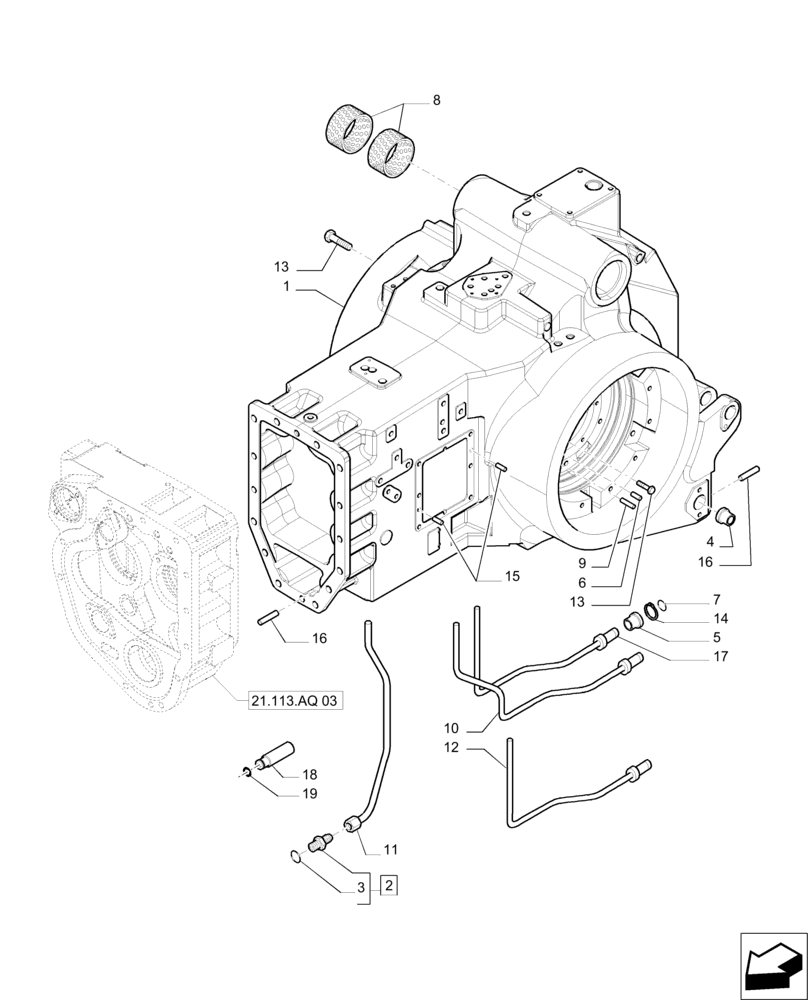

Запчасти Case IH PUMA 215 (21.113.AR[01]) - CENTRAL HOUSING / TRANSMISSION BOX (21) - TRANSMISSION

1

84490298

TRANSMISSION HOUSING

1шт.

2

5154713

HYD CONNECTOR

Incl 3

1шт.

3

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

4

5194813

BUSHING,37mm ID x 53mm OD x 40mm L

4шт.

5

84268812

BUSHING,16mm ID x 23mm OD x 16mm L

3шт.

6

5110200

DOWEL,12mm OD x 25mm L

6шт.

7

14453182

O-RING,0.07" Thk x 0.489" ID, -14, Cl 9, 70 Duro

3шт.

8

5185956

BUSHING,80.1mm ID x 85mm OD x 60mm L

4шт.

9

5187995

GUIDE PIN,15mm OD x 65mm L

6шт.

10

84271077

TUBE

1шт.

11

5198507

TUBE

1шт.

12

84269540

TUBE

1шт.

13

14306520

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

14

84268818

SNAP RING

3шт.

15

10839710

DOWEL,M10 x 15.00mm

2шт.

16

4985062

DOWEL,15mm OD x 25mm L

4шт.

17

84269541

TUBE

1шт.

18

84226973

HYD TUBE,10 mm ID x 20 mm OD x 80.5 mm L

2шт.

19

14453182

O-RING,0.07" Thk x 0.489" ID, -14, Cl 9, 70 Duro

2шт.
