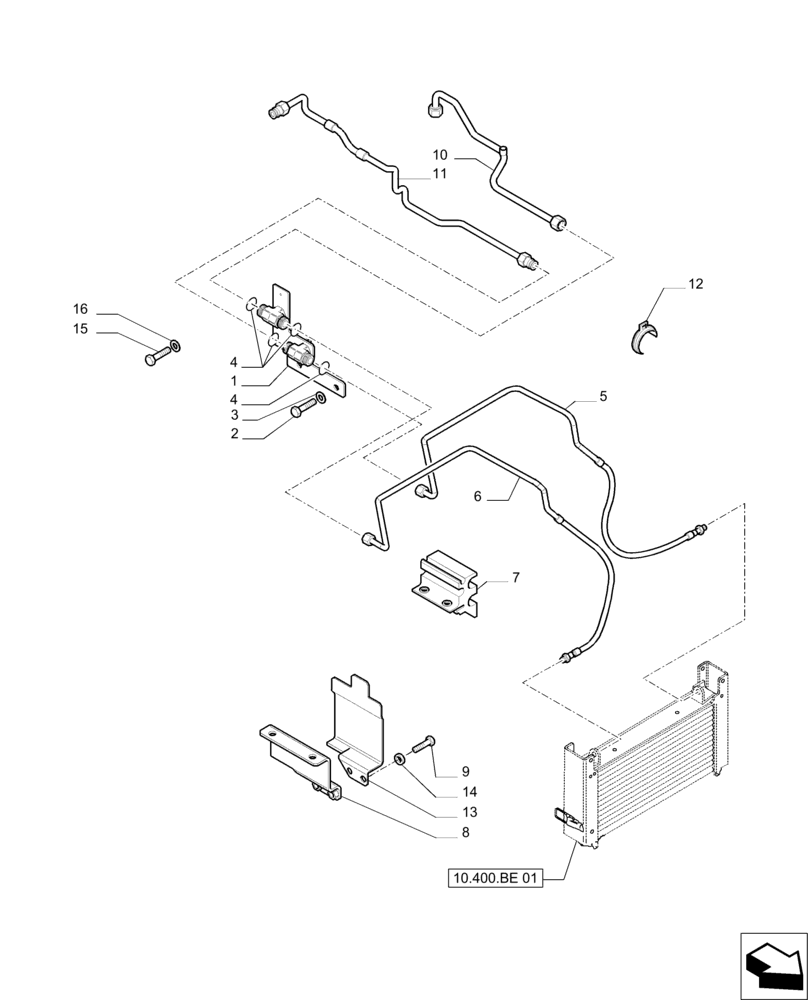

Запчасти Case IH PUMA 215 (21.109.AD) - TRANSMISSION OIL COOLER - PIPES (21) - TRANSMISSION

1

84136405

HOLDER

1шт.

2

11112421

SCREW,Hex, M12 x 30mm, Cl 8.8

3шт.

3

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

3шт.

4

81825117

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

4шт.

5

87392497

PIPE

1шт.

6

87582442

PIPE

1шт.

7

87487747

SUPPORT

1шт.

8

87579221

PLATE

1шт.

9

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

10

84497510

HYD TUBE

1шт.

11

87305426

HYD TUBE,16 mm ID

1шт.

12

87363477

CLIP

2шт.

13

87484736

COVER

1шт.

14

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

4шт.

15

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

2шт.

16

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

2шт.
