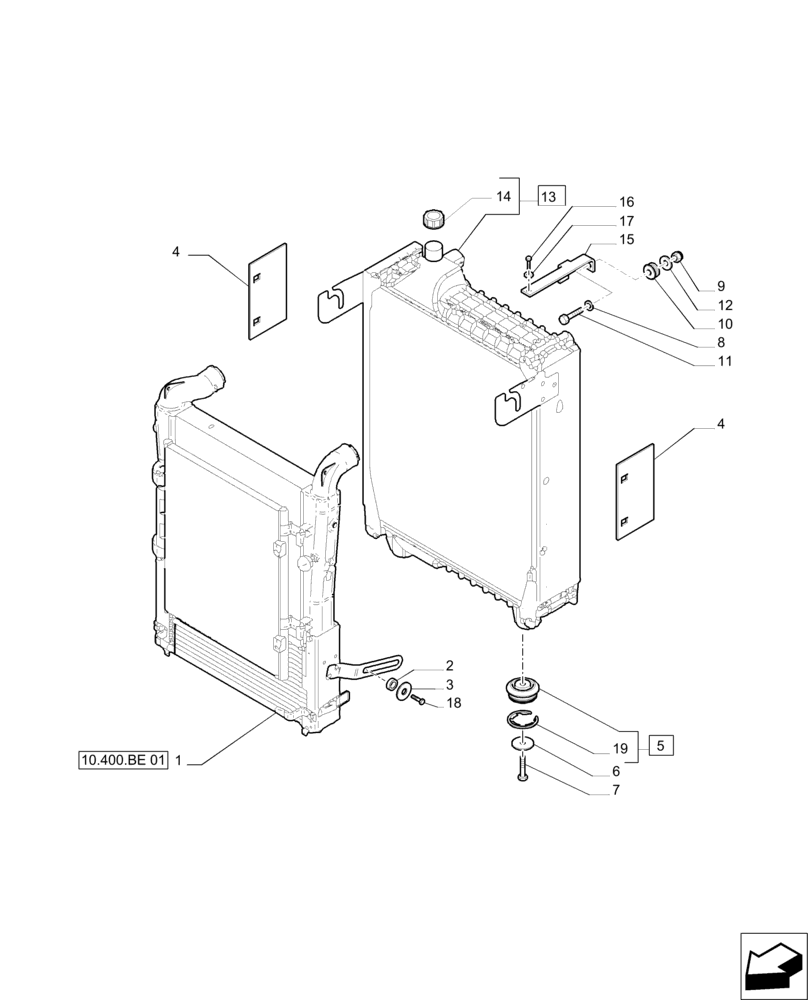

Запчасти Case IH PUMA 215 (10.400.BE[02]) - RADIATOR & RELATED PARTS (10) - ENGINE

1

84523125

COOLER

1шт.

2

87385194

ROLLER BEARING,8mm ID x 16mm OD x 5mm W

2шт.

3

87385196

WASHER,8.5mm ID X 25mm OD X 2mm

2шт.

4

84492859

GASKET,4mm Thk

2шт.

5

82023389

ISOLATOR,67mm OD x 35.5mm L

Incl 19

2шт.

6

5102702

WASHER,10.5mm ID x 45mm OD x 3mm Thk

2шт.

7

9602206

SCREW,Hex, M10 x 1.25 x 50mm, Cl 8.8

2шт.

8

85700654

WASHER,10.5mm ID x 20mm OD x 2.5mm Thk

1шт.

9

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

1шт.

10

82009429

ISOLATOR

1шт.

11

11098621

BOLT,Hex, M10 x 45mm, Cl 8.8, Full Thd

1шт.

12

83904166

WASHER,10.5mm ID x 30mm OD x 4mm Thk

1шт.

13

84249170

RADIATOR

1шт.

13

84249173

RADIATOR

Incl 14

1шт.

14

87306788

RADIATOR CAP

1шт.

15

87308170

BAR

1шт.

16

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

1шт.

17

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

1шт.

18

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

19

82033528

SNAP RING,55mm ID

1шт.
