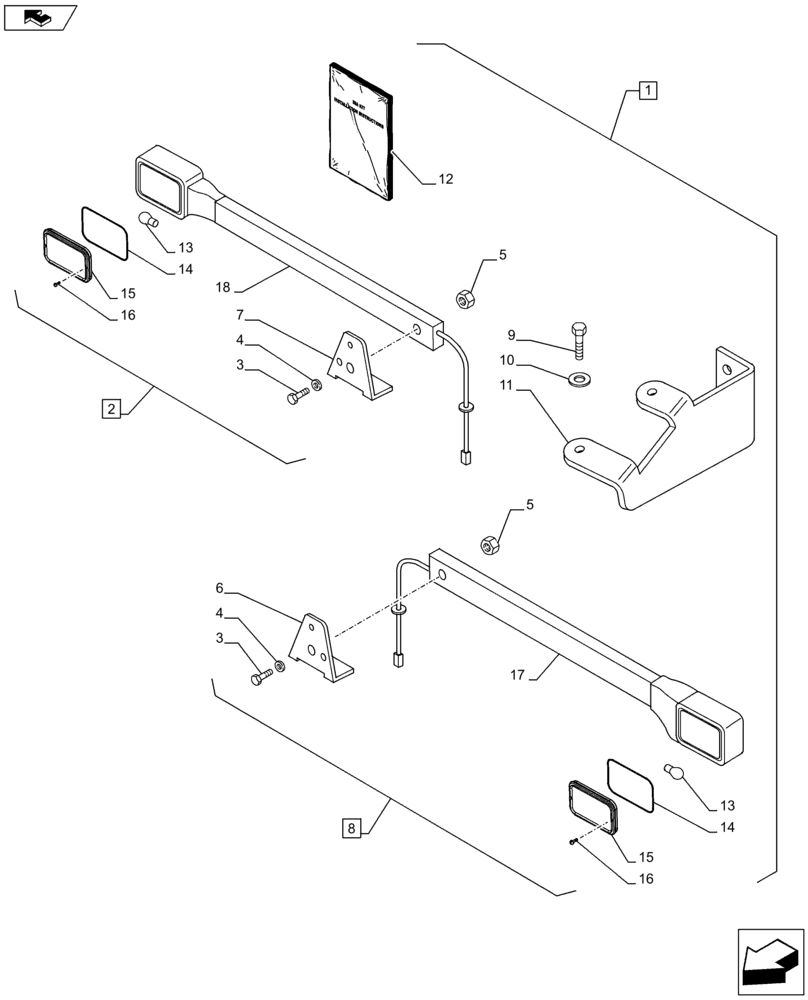

Запчасти Case IH PUMA 215 (88.055.06) - DIA KIT - EXTREMITY LIGHTS (88) - ACCESSORIES

1

710615034

DIA KIT, TRACTOR

Extremity Lights, Contains Ref. 2 - 11, 13 - 18 & Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

82038971

SIDE LAMP ASSY

RH, Contains Ref. 3 - 5, 7, 13 - 18

1шт.

3

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

4шт.

4

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

4шт.

5

15896211

NUT,M6, Cl 8

4шт.

6

87324714

BRACKET

LH

1шт.

7

87324716

BRACKET

RH

1шт.

8

82038970

SIDE LAMP ASSY

LH, Contains Ref. 3 - 6, 8, 13 - 18

1шт.

9

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

4шт.

10

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

11

82038220

BRACKET

LH

1шт.

11

82038222

BRACKET

RH

1шт.

12

84134503

INSTRUCTION

1шт.

13

529068

BULB,#1156, 12V, 21W

2шт.

14

233561A1

O-RING,0.07" Thk x 4379" ID, -48, 70 Duro

2шт.

15

86576124

LENS

2шт.

16

NSS

NOT SOLD SEPARAT

Screw

4шт.

17

NSS

NOT SOLD SEPARAT

Lamp Support, LH, Incl in 8

1шт.

18

NSS

NOT SOLD SEPARAT

Lamp Support, RH, Incl in 2

1шт.
