Запчасти Case IH PUMA 215 (88.035.08[08]) - DIA KIT - FRONT HPL FOR ELECTRONIC REMOTES WITH PTO, LESS AUX. COUPLERS - GEARBOX - BREAKDOWN (88) - ACCESSORIES

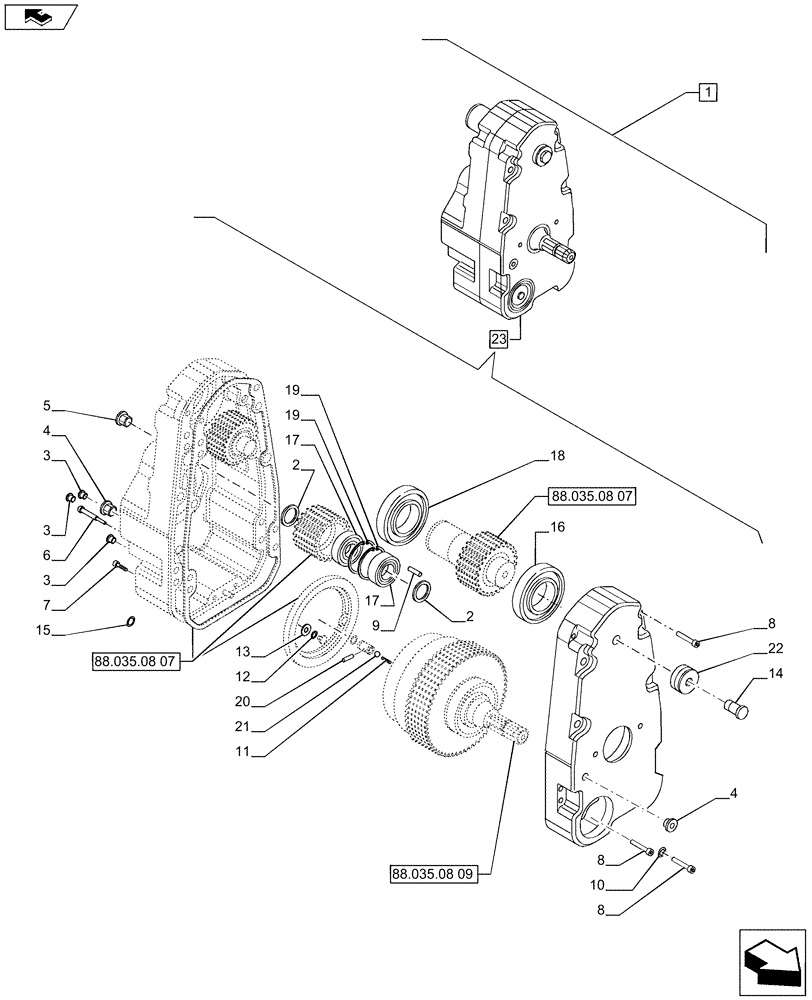

Схема запчастей Case IH PUMA 215 - (88.035.08[08]) - DIA KIT - FRONT HPL FOR ELECTRONIC REMOTES WITH PTO, LESS AUX. COUPLERS - GEARBOX - BREAKDOWN (88) - ACCESSORIES
7
8
3
4
6
3
18
1
9
8
16
2
15
11
4
10
22
13
19
12
19
23
5
8
21
14
17
3
88.035.08 09
home
88.035.08 07
88.035.08 07
20
2
17

Артикул

Название

Примечание

Количество

1

710064114

Front Linkage for Electronic Remote with PTO, less Aux. Couplers, Contains Ref. 2-23

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

87712184

SPACER

4шт.

3

87734731

PLUG

M10 x 1

3шт.

4

87734727

PLUG

M18 x 1.5

2шт.

5

87734725

PLUG

M20 x 1.5

1шт.

6

87712527

BOLT,Hex, M6 x 65mm, Cl 8.8

M6 x 65

1шт.

7

120100

BOLT,M6 x 20mm, Cl 8.8

1шт.

8

87712540

SCREW,M8 x 45mm, Cl 12.9

M8 x 45

8шт.

9

300871

LOCK PIN,M8 x 30, Slotted

4шт.

10

87725779

SEALING WASHER

2шт.

11

87713421

SPRING

1шт.

12

87713425

SPRING WASHER

2шт.

13

87725778

WASHER,7.4mm ID x 22mm OD x 0.8mm Thk

M7 x 20

2шт.

14

87713416

BANJO BOLT

1шт.

15

87737974

PLUG

1шт.

16

87712557

BALL BEARING

1шт.

17

87712472

ROLLER BEARING,30mm ID x 62mm OD x 20mm W

4шт.

18

87712562

BALL BEARING

1шт.

19

370012

RING,M62, Internal

4шт.

20

87712824

PIN

1шт.

21

86637959

BALL,6mm OD, Gr 28

1шт.

22

87713417

BREATHER

M18 x 1.5

1шт.

23

87745486

GEARBOX

ASSY, Contains Ref. 2-22

1шт.

Выбрано товаров: 24
