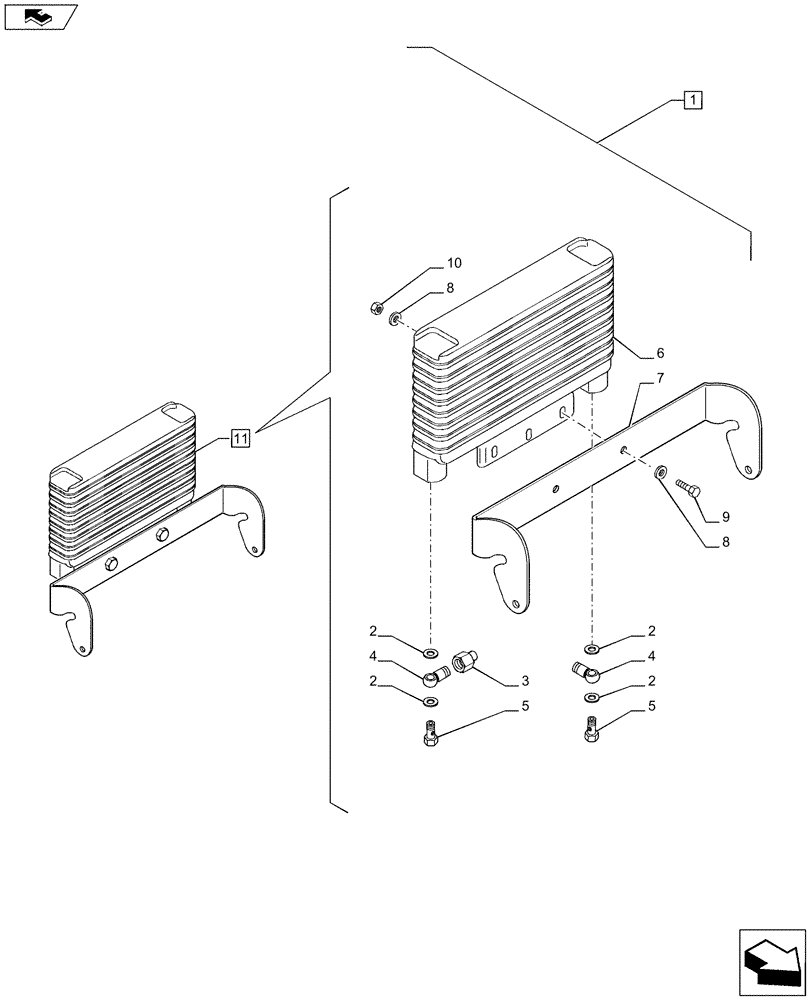

Запчасти Case IH PUMA 215 (88.035.08[06]) - DIA KIT - FRONT HPL FOR ELECTRONIC REMOTES WITH PTO, LESS AUX. COUPLERS - OIL COOLER - BREAKDOWN (88) - ACCESSORIES

1

710064114

Front Linkage for Electronic Remote with PTO, less Aux. Couplers, Contains Ref. 2-11, Serial Range: -`0

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

5165897

SEALING WASHER,22.7mm ID x 30mm OD x 2mm Thk

ASSY

4шт.

3

84278114

FITTING

1шт.

4

84177636

HYD CONNECTOR

2шт.

5

87662204

BANJO BOLT

2шт.

6

84123878

OIL COOLER

1шт.

7

84177632

SUPPORT

1шт.

8

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

9

84123843

BOLT,Hex, M8 x 20mm, Cl 8.8, Full Thd

2шт.

10

9706690

NUT,M8 x 1.25, Cl 8

2шт.

11

84177631

OIL COOLER

ASSY, Contains Ref. 2-10

1шт.
