Запчасти Case IH PUMA 215 (88.035.08[04]) - DIA KIT - FRONT HPL FOR ELECTRONIC REMOTES WITH PTO, LESS AUX. COUPLERS - SWITCHES (88) - ACCESSORIES

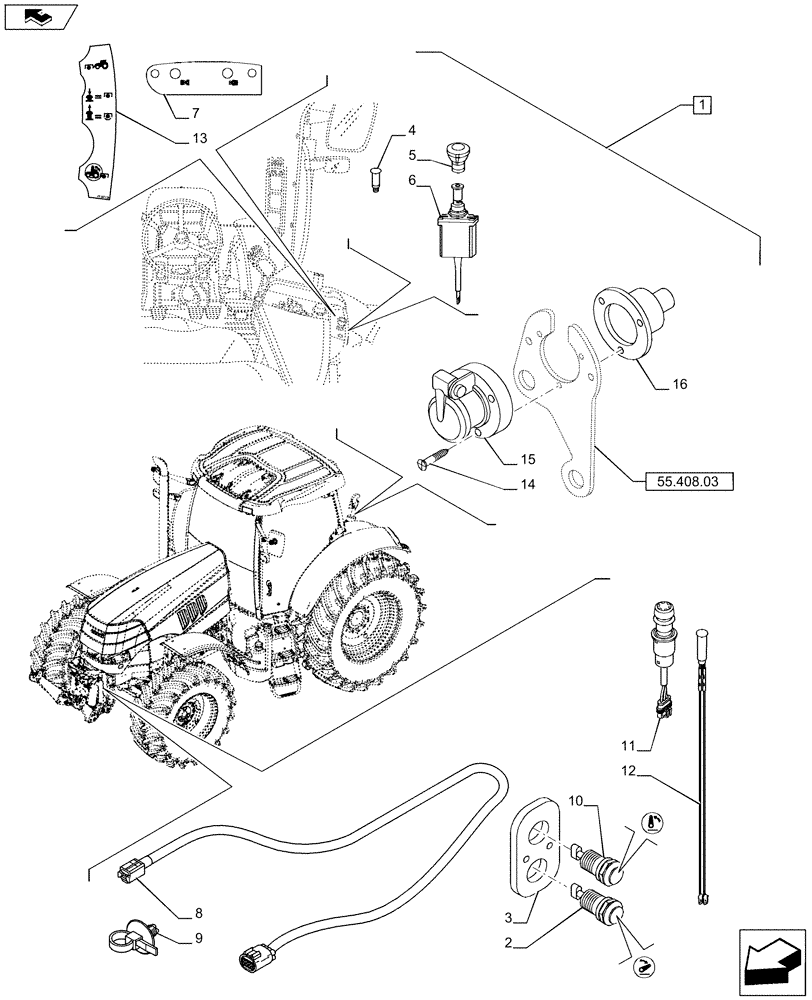

Схема запчастей Case IH PUMA 215 - (88.035.08[04]) - DIA KIT - FRONT HPL FOR ELECTRONIC REMOTES WITH PTO, LESS AUX. COUPLERS - SWITCHES (88) - ACCESSORIES
5
8
6
11
12
2
7
55.408.03
home
4
15
9
3
14
16
13
1
10

Артикул

Название

Примечание

Количество

1

710064094

Front Linkage for Electronic Remote with PTO, less Aux. Coupler, Contains Ref. 2-16

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

87339137

SWITCH ASSY

Front Hitch Lower, External RH

1шт.

3

87348408

MOUNTING PARTS

1шт.

4

47056319

WARNING LIGHT

3шт.

5

87638633

KNOB

1шт.

6

84218194

SWITCH ASSY

1шт.

7

87725492

DECAL

1шт.

8

87311800

WIRE HARNESS

1шт.

9

82033028

CABLE TIE,170mm L

2шт.

10

87339136

SWITCH ASSY

Front Hitch Raise, External LH

1шт.

11

87605071

SWITCH ASSY

1шт.

12

82036455

WARNING LIGHT

Contains Ref. 4

1шт.

13

87556490

DECAL

1шт.

14

260-14524

SELF-TAP SCREW,Cross Pan Hd, #10 x 1 1/2"

3шт.

15

83959716

POWER SOCKET,7 Pins

1шт.

16

82013268

BOOT

1шт.

Выбрано товаров: 17
