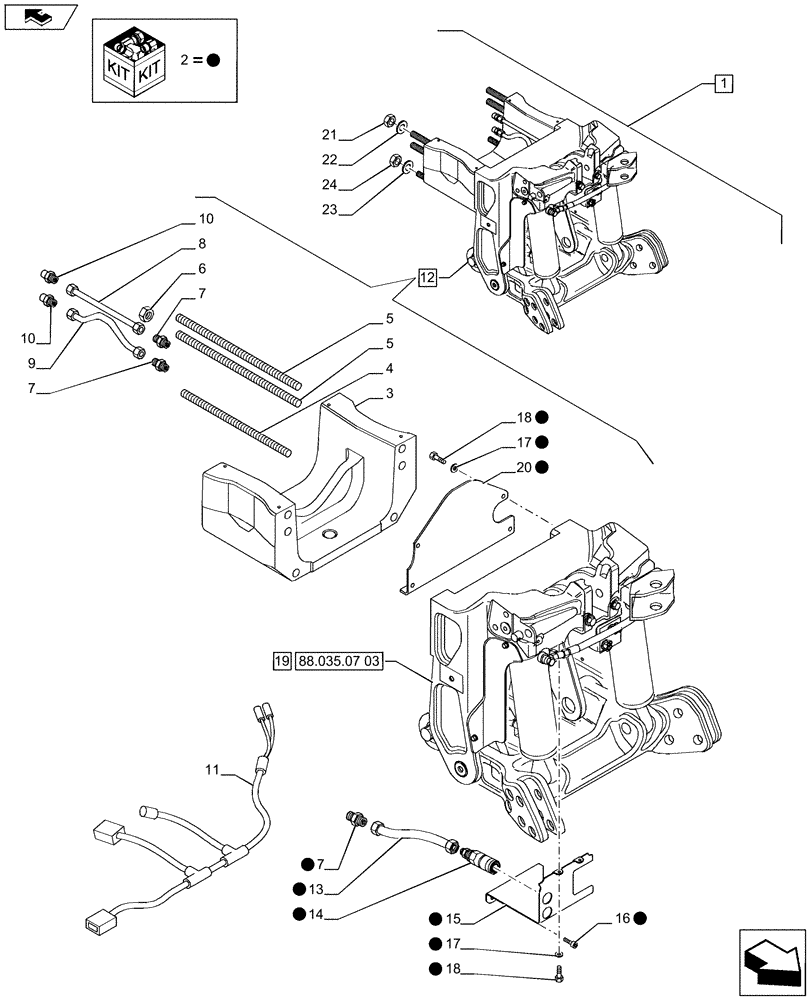

Запчасти Case IH PUMA 215 (88.035.07[02]) - DIA KIT - FRONT HPL FOR ELECTRONIC/MECHANICAL REMOTES LESS PTO, LESS AUX. COUPLERS - BREAKDOWN (88) - ACCESSORIES

1

710062064

Front Linkage for Suspended and STD Axles, less PTO, less Aux. Coupler, Contains Ref. 2-24

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84177635

COVER

1шт.

3

87630402

SPACER

1шт.

4

87630405

STUD

M20

2шт.

5

87630404

STUD

M24

4шт.

6

87016573

NUT

M24

2шт.

7

87687702

HYD CONNECTOR

2шт.

8

87641807

PIPE

Botton

1шт.

9

87641803

PIPE

Top

1шт.

10

87687701

HYD CONNECTOR

2шт.

11

84364844

WIRE HARNESS

1шт.

12

87476101

HITCH

ASSY, Contains Ref. 2-10

1шт.

13

87627696

PUSH-PULL COUPLING

2шт.

14

87627695

PIPE

2шт.

15

87676926

COVER

1шт.

16

87706765

HEX SOC SCREW,M14 x 30mm, Cl 8.8

2шт.

17

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

8шт.

18

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

6шт.

19

87476103

HITCH

1шт.

20

87688327

COVER

1шт.

21

87391840

NUT,M24 x 3, Class 10.9

M24

4шт.

22

87343481

WASHER,25mm ID x 44mm OD x 4mm Thk

4шт.

23

11191774

BELLEVILLE WASHER,M20 Bolt Size x 38mm OD x 4.6mm Thk

2шт.

24

12163524

NUT

2шт.
