Запчасти Case IH PUMA 215 (88.033.09[12]) - DIA KIT - PNEUMATIC TRAILER BRAKE (UNIVERSAL) - GUARD (88) - ACCESSORIES

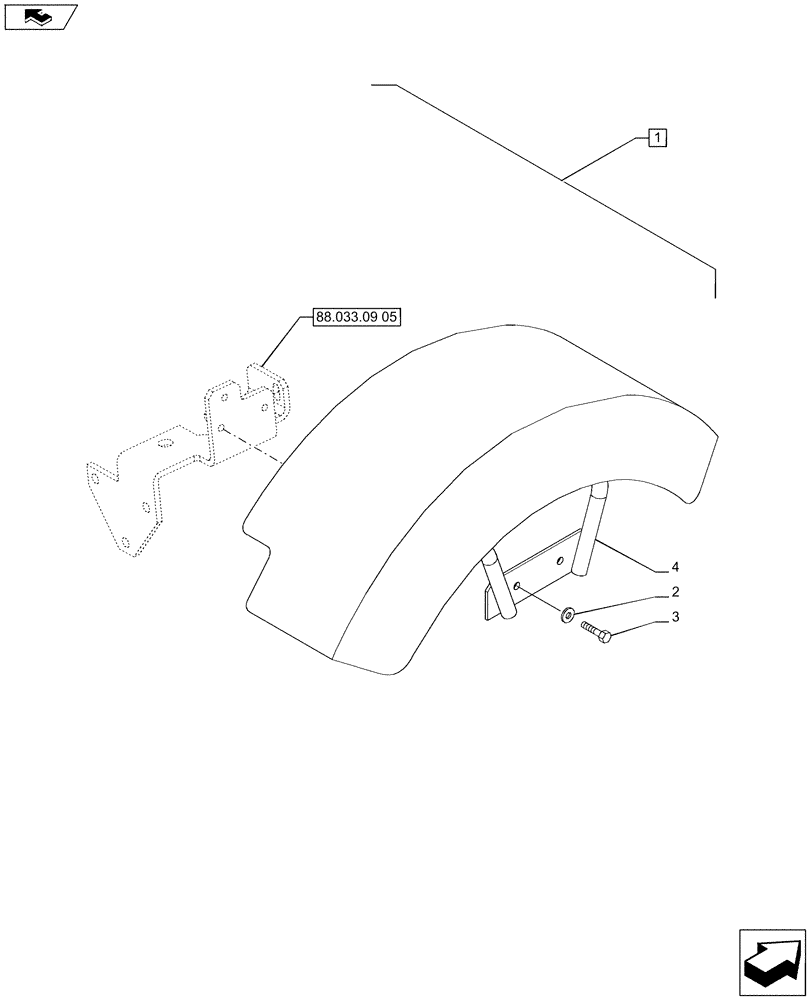

Схема запчастей Case IH PUMA 215 - (88.033.09[12]) - DIA KIT - PNEUMATIC TRAILER BRAKE (UNIVERSAL) - GUARD (88) - ACCESSORIES
88.033.09 05
home
2
3
1
4

Артикул

Название

Примечание

Количество

1

719385204

DIA KIT, TRACTOR

Pneumatic Trailer Brake (Universal), Contains Ref. 2-4

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

M8 x 16

2шт.

3

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

4

87667105

GUARD

1шт.

Выбрано товаров: 5
