Запчасти Case IH PUMA 215 (88.033.06[12]) - DIA KIT - PNEUMATIC TRAILER BRAKE (ITALY) - BRACKET AND COUPLING (88) - ACCESSORIES

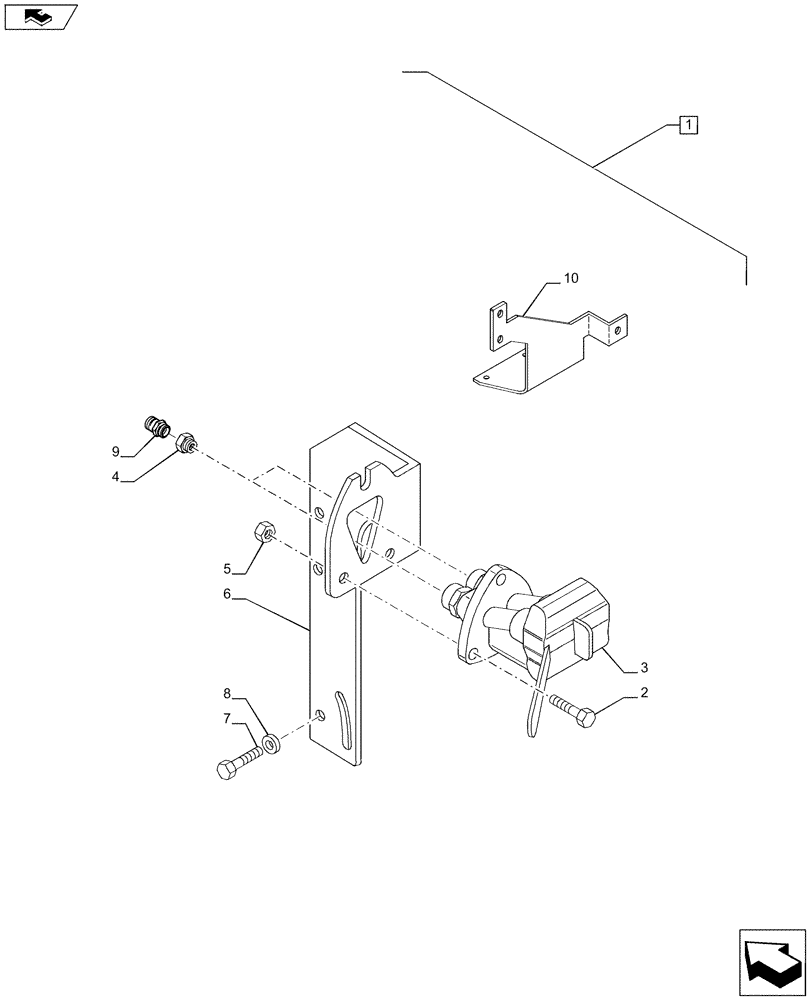

Схема запчастей Case IH PUMA 215 - (88.033.06[12]) - DIA KIT - PNEUMATIC TRAILER BRAKE (ITALY) - BRACKET AND COUPLING (88) - ACCESSORIES
9
7
8
home
3
10
6
2
1
5
4

Артикул

Название

Примечание

Количество

1

718385194

DIA KIT, TRACTOR

Pneumatic Trailer Brake (Italy), Contains Ref. 2-10

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

11106421

SCREW,Hex, M10 x 1.5 x 30mm, Cl 8.8

3шт.

3

87692947

PUSH-PULL COUPLING

1шт.

4

82034157

ADAPTER

2шт.

5

11701711

NUT,Hex, M10, Cl 8, ZND

3шт.

6

87666026

BRACKET

1шт.

7

11106221

SCREW,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

8

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

9

87741618

COUPLING

2шт.

10

87606848

SUPPORT

1шт.

Выбрано товаров: 11
