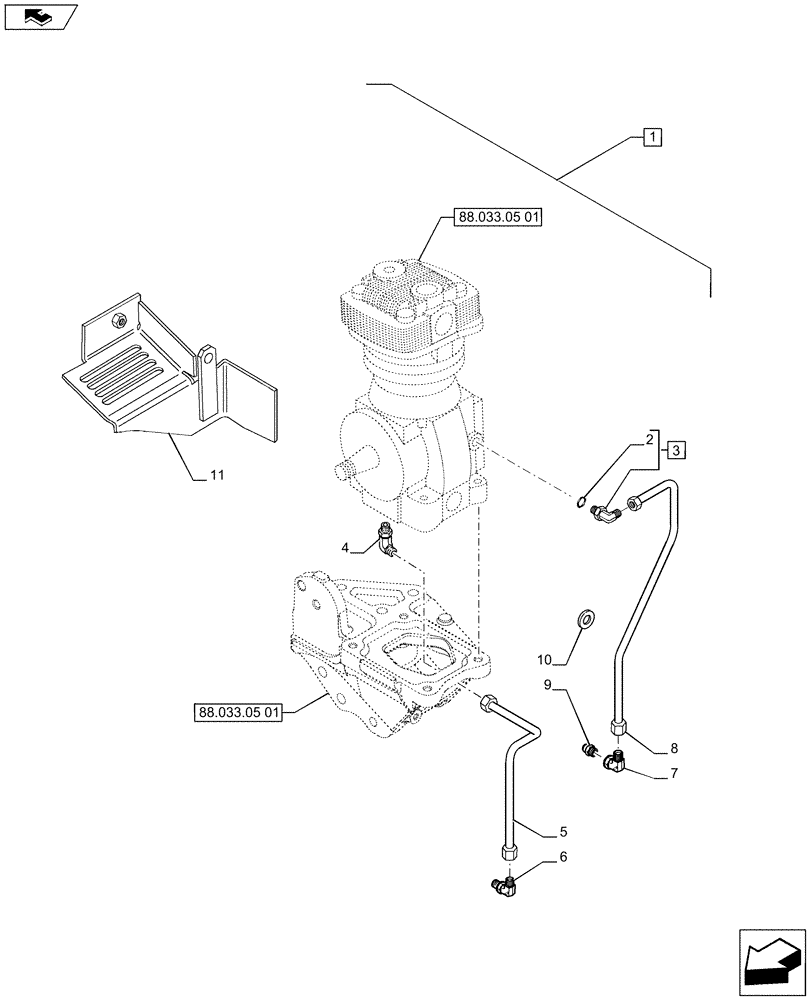

Запчасти Case IH PUMA 215 (88.033.05[02]) - DIA KIT - PNEUMATIC TRAILER BRAKE (UK) - PIPES (88) - ACCESSORIES

1

710178194

DIA KIT, TRACTOR

Pneumatic Trailer Brake (UK), Contains Ref. 2-11

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

14437585

O-RING,8.00mm ID x 1.50mm

1шт.

3

82002502

90 ELBOW,7/16"-20 x M10 x 1

Contains Ref. 2

1шт.

4

87802837

ELBOW,45 Deg, 7/8-14 x M22 x 1.5 ORB

1шт.

5

2855977

TUBE,485.7 mm Length

1шт.

6

82003206

ELBOW,90 Deg, 7/8-14 x M22 x 1.5 ORB

1шт.

7

86512933

90 ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

1шт.

8

87310442

TUBE,6 mm OD

1шт.

9

87802702

HYD CONNECTOR

1шт.

10

81806277

SEAL,20.83mm ID x 31.75mm OD x 8.13mm Thk

SEALRING

1шт.

11

87632723

GUARD

1шт.
