Запчасти Case IH PUMA 215 (88.025.01) - DIA KIT - SIDE RAILS (88) - ACCESSORIES

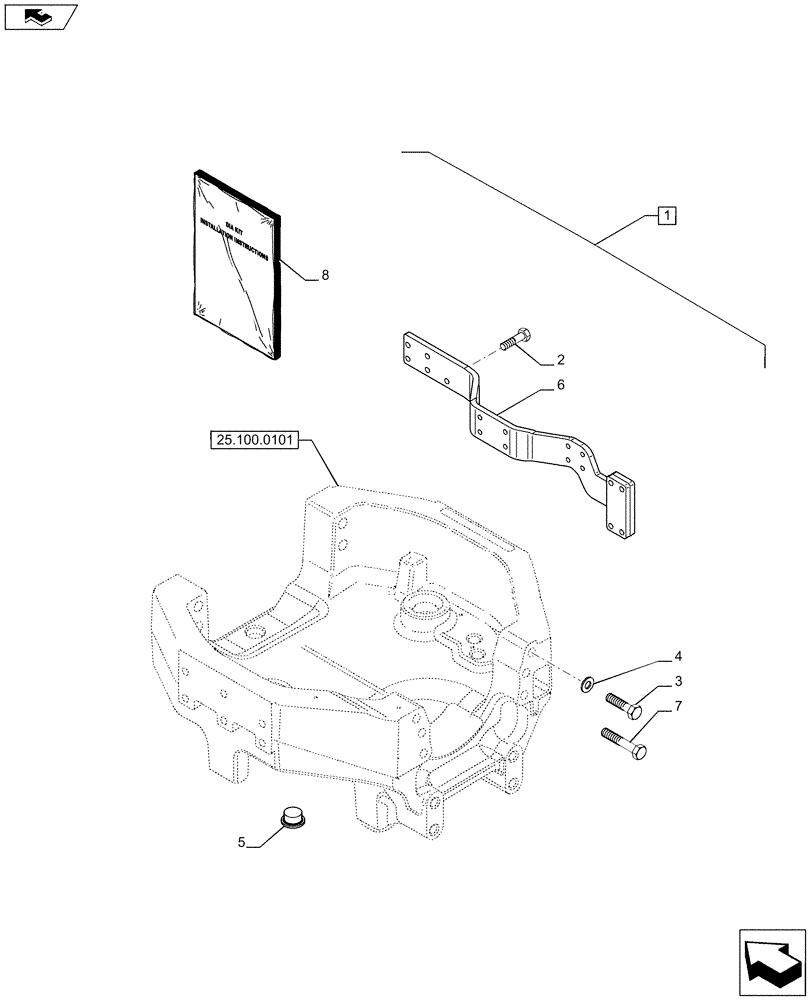

Схема запчастей Case IH PUMA 215 - (88.025.01) - DIA KIT - SIDE RAILS (88) - ACCESSORIES
25.100.0101
home
5
1
6
8
4
7
3
2

Артикул

Название

Примечание

Количество

1

710245104

DIA KIT, TRACTOR

Front Side Rails, Contains Ref. 2-7 & Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

82020153

BOLT,Flng, M20 x 2.5 x 58mm, Cl 12.9

Self Locking, M20 x 2.5 x 58, 12.9

10шт.

3

87380456

BOLT,Hex, M20 x 85mm, Cl 12.9

M20 x 85

4шт.

4

82028022

WASHER,M8 x 1.25 ID x 40mm OD x 9mm Thk, CRLC or HRLC Steel

D=20

8шт.

5

82039357

PLUG

8шт.

6

87346030

SUPPORT

LH

1шт.

6

87311068

SUPPORT

RH

1шт.

7

11125874

BOLT,Hex, M20 x 105, 12.9

4шт.

8

84134094

INSTRUCTION

1шт.

Выбрано товаров: 10
