Запчасти Case IH PUMA 215 (88.010.01) - DIA KIT - ENGINE BLOCK AND TRANSMISSION OIL HEATERS (110 V) (88) - ACCESSORIES

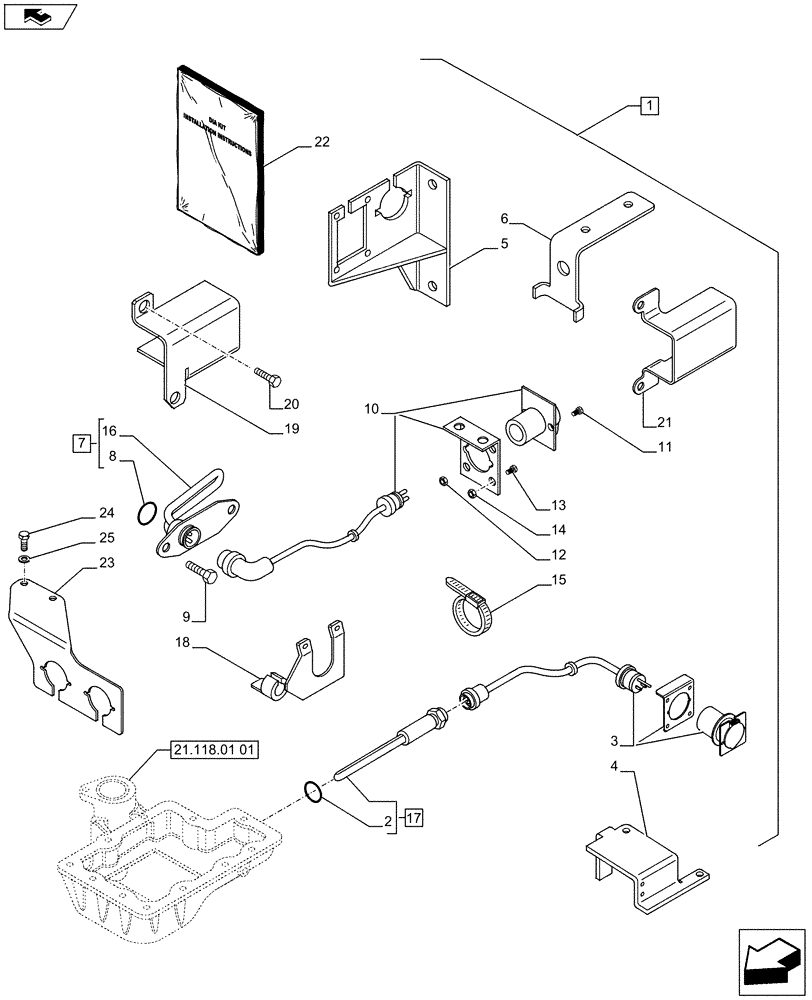

Схема запчастей Case IH PUMA 215 - (88.010.01) - DIA KIT - ENGINE BLOCK AND TRANSMISSION OIL HEATERS (110 V) (88) - ACCESSORIES
16
3
8
25
10
19
9
7
12
21.118.01 01
1
23
14
15
22
11
21
4
home
18
24
5
20
2
13
17
6

Артикул

Название

Примечание

Количество

1

710206094

DIA KIT, TRACTOR

Engine Coolant Heater & Transmission Oil Heather (110 V), Contains Ref. 2-21 & Assembly instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

81903721

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

116V

1шт.

3

84130687

ELECTRIC CABLE

, Serial Range: -C7114

1шт.

3

84397506

ELECTRIC CABLE,78mm L

, Start Serial: D7114

1шт.

4

87571524

GUARD

1шт.

5

84167089

SUPPORT

1шт.

6

87633005

BRACKET

1шт.

7

4891287

HEATER

Engine Block, 120V, Contains Ref. 8,16

1шт.

8

4891258

O-RING,1.984" ID x 2.262" OD x 0.139"

1шт.

9

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

10

87756876

ELECTRIC CABLE

, Serial Range: -C7114

1шт.

10

84397507

ELECTRIC CABLE

, Start Serial: D7114

1шт.

11

13271914

SCREW,Pozidriv Pan Hd, M4 x 10mm, Cl 5.8, Full Thd

, Serial Range: -C7114

4шт.

12

10794011

NUT,M4, Cl 8

, Serial Range: -C7114

4шт.

13

13276414

SCREW,Pozidriv Pan Hd, M6 x 20mm, Cl 5.8, Full Thd

4шт.

14

86619800

FLANGE NUT,M6 x 1, Cl 8

4шт.

15

82001041

CABLE TIE,0.190" x 7.00" / 200 mm L

CABLE STRAP

2шт.

16

4891249

BLOCK HEATER

1шт.

17

84130678

HEATER,110V

Contains Ref. 2

1шт.

18

87651112

BRACKET

1шт.

19

84278885

GUARD

1шт.

20

14420271

HEX SOC SCREW,M10 x 1.5 x 30mm, Cl 12.9, Full Thd

1шт.

21

87616064

GUARD

1шт.

22

84202625

INSTRUCTION

1шт.

23

84305836

SUPPORT

, Start Serial: D7114

1шт.

24

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

, Start Serial: D7114

2шт.

25

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

, Start Serial: D7114

2шт.

Выбрано товаров: 28
