(55.512.05[02]) - ARMREST CONTROL UNIT - INTEGRATED CONTROL PANEL

Запчасти Case IH PUMA 215 (55.512.05[02]) - ARMREST CONTROL UNIT - INTEGRATED CONTROL PANEL (55) - ELECTRICAL SYSTEMS

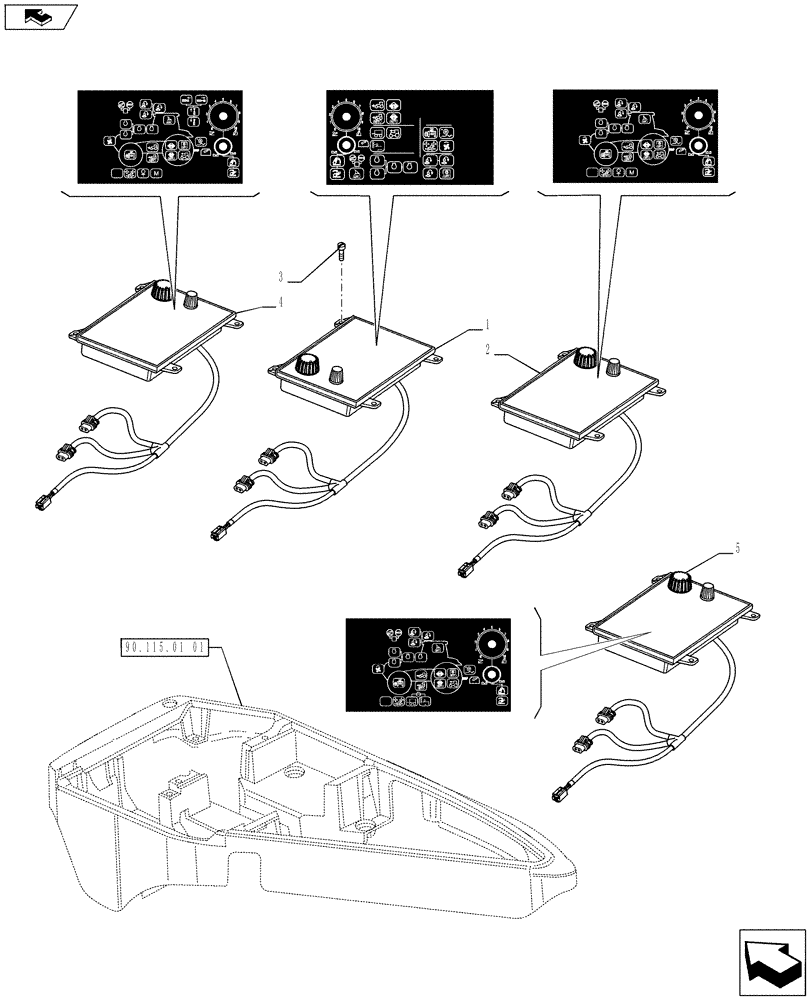

Схема запчастей Case IH PUMA 215 - (55.512.05[02]) - ARMREST CONTROL UNIT - INTEGRATED CONTROL PANEL (55) - ELECTRICAL SYSTEMS
4
5
1
90.115.01 01
home
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84241064

ECU

1шт.

Made in UK

1шт.

2

84241061

ECU

1шт.

Made in Austria

1шт.

3

13272017

SCREW,Pozidriv Pan Hd, M4 x 12mm

4шт.

4

84241060

ECU

1шт.

Front 3 Points Hitch, VAR.728484 (Commercial Feature 743470)

1шт.

5

84171966

PANEL

1шт.

Only for Models with Mechanical Remotes

1шт.
