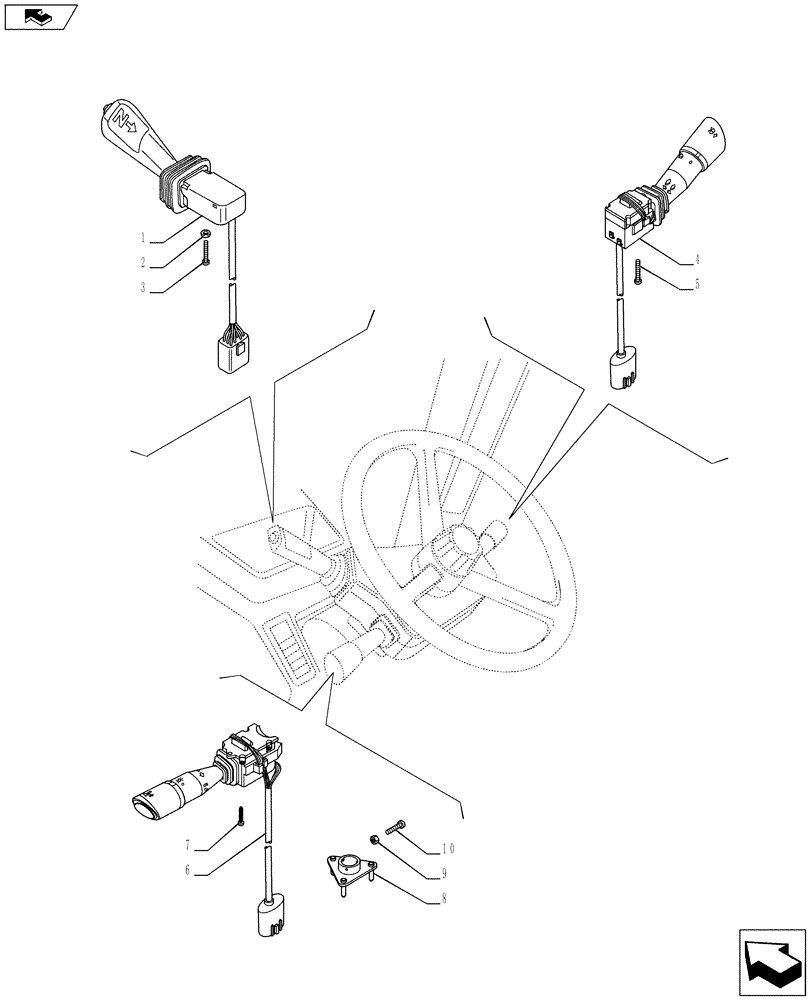

Запчасти Case IH PUMA 215 (55.512.02[01]) - SHUTTLE, WASH WIPE AND HEADLIGHT LEVERS (55) - ELECTRICAL SYSTEMS

1

87472289

LEVER

Shuttles

1шт.

Standard Equipment

1шт.

1

87471629

LEVER

1шт.

Electronic Parking Brake, VAR.728127-743334 (Commercial Feature 743602)

1шт.

2

10615279

LOCK WASHER,M4, Serr

3шт.

3

82880809

SCREW,Pan, M4 x 8mm, Gr 4.8

3шт.

4

84288425

SWITCH

1шт.

5

15643001

SCREW,Pozidriv Pan Hd, M3.5 x 1.3 x 25mm

3шт.

6

87490159

SWITCH ASSY

Head Light

1шт.

6

87733123

SWITCH ASSY

1шт.

Self Cancelling Turn Indicators, VAR.728602; VAR.744457-744458 (Commercial Feature 743100)

1шт.

7

15687201

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 13mm

3шт.

Self Cancelling Turn Indicators, VAR.728602; VAR.744457-744458 (Commercial Feature 743100)

1шт.

8

87678850

ACTUATOR

1шт.

Self Cancelling Turn Indicators, VAR.728602; VAR.744457-744458 (Commercial Feature 743100)

1шт.

9

10794011

NUT,M4, Cl 8

3шт.

Self Cancelling Turn Indicators, VAR.728602; VAR.744457-744458 (Commercial Feature 743100)

1шт.

10

83949904

SCREW,Pan, M4 x 10mm, Gr 4.8

3шт.

Self Cancelling Turn Indicators, VAR.728602; VAR.744457-744458 (Commercial Feature 743100)

1шт.
