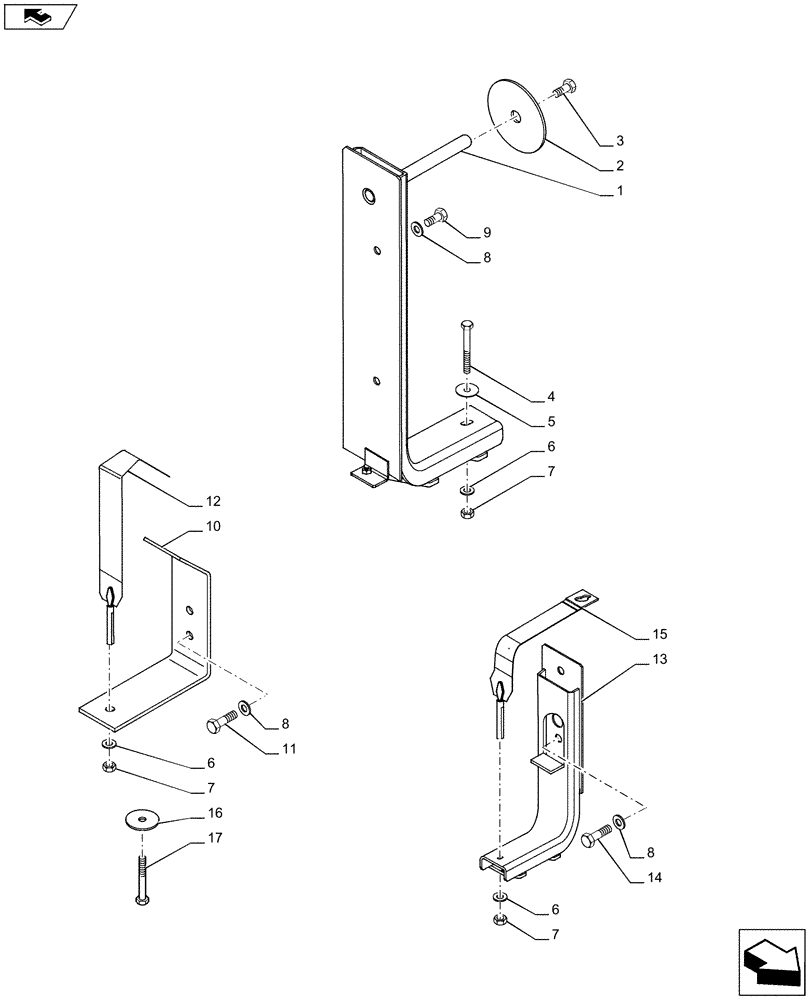

Запчасти Case IH PUMA 215 (10.216.02[01]) - FUEL TANK SUPPORTS (10) - ENGINE

1

84389610

HOLDER

1шт.

2

84388777

SPACER,11mm ID x 120mm OD x 1mm L

1шт.

3

11106624

SCREW,Hex, M10 x 1.5 x 35 mm, Cl 8.8, Full Thd

1шт.

4

120116

SCREW,Hex, M10 x 1.5 x 80mm, Cl 8.8, Full Thd

1шт.

5

12644301

WASHER,M10 x 35 x 3

1шт.

6

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

3шт.

7

100037

LOCK NUT,M10 x 1.5, Cl 8

3шт.

8

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

6шт.

9

15540424

SCREW,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

10

84306176

BRACKET

1шт.

11

11112821

BOLT,Hex, M12 x 40mm, Cl 8.8, Full Thd

2шт.

12

84317148

STRAP

1шт.

13

84331082

HOLDER

1шт.

14

15540421

SCREW,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

15

84319310

STRAP,253mm L

1шт.

16

9511052

WASHER,13.5mm ID x 44mm OD x 4mm Thk

1шт.

17

120115

BOLT,M10 x 1.5 x 76.58mm, Cl 8.8

1шт.
