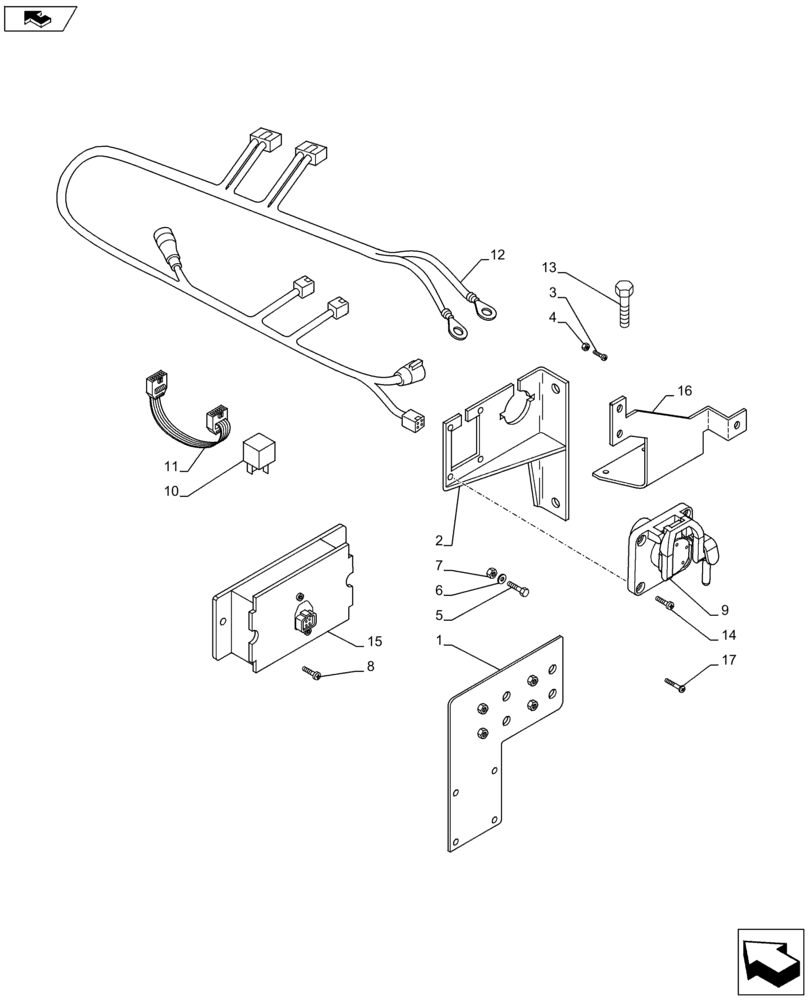

Запчасти Case IH PUMA 215 (55.100.61) - ISO BUS SOCKET - ISO BUS MOUNTING (VAR.743447-743407) (55) - ELECTRICAL SYSTEMS

1

84268760

SUPPORT

Isobus Power Fuses

1шт.

2

84167089

SUPPORT

1шт.

Standard Equipment

1шт.

3

10977821

BOLT,M5 x 19.65mm OAL, Cl 8.8

4шт.

4

15896411

NUT,Hex, M5, 4.70mm High, Cl 8

4шт.

5

120100

BOLT,M6 x 20mm, Cl 8.8

4шт.

6

10571579

LOCK WASHER,M6

4шт.

7

15896211

NUT,M6, Cl 8

4шт.

8

15645501

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 16mm

2шт.

Also for Baler Bar Display Ready, VAR.743407

1шт.

9

87522416

ELEC CONNECTOR,Female, 5 Cavities

Isobus Breakaway

1шт.

10

82017871

RELAY,12V, 20A

2шт.

11

87638191

WIRE HARNESS

Link Lead

1шт.

12

84264480

HARNESS

Isobus Power

1шт.

13

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

14

83976489

SCREW,Pan, M5 x 20mm, Cl 4.8

M5 x 20

4шт.

15

82038683

ELEC. TERMINAL PIN

ELEC CONNECTOR

1шт.

Also for Baler Bar Display Ready, VAR.743407

1шт.

16

87606848

SUPPORT

1шт.

Only for Models with Mechanical Remotes

1шт.

17

84346912

SCREW,Torx, Pan HD, M4 x 55mm, Cl 4.8

2шт.
