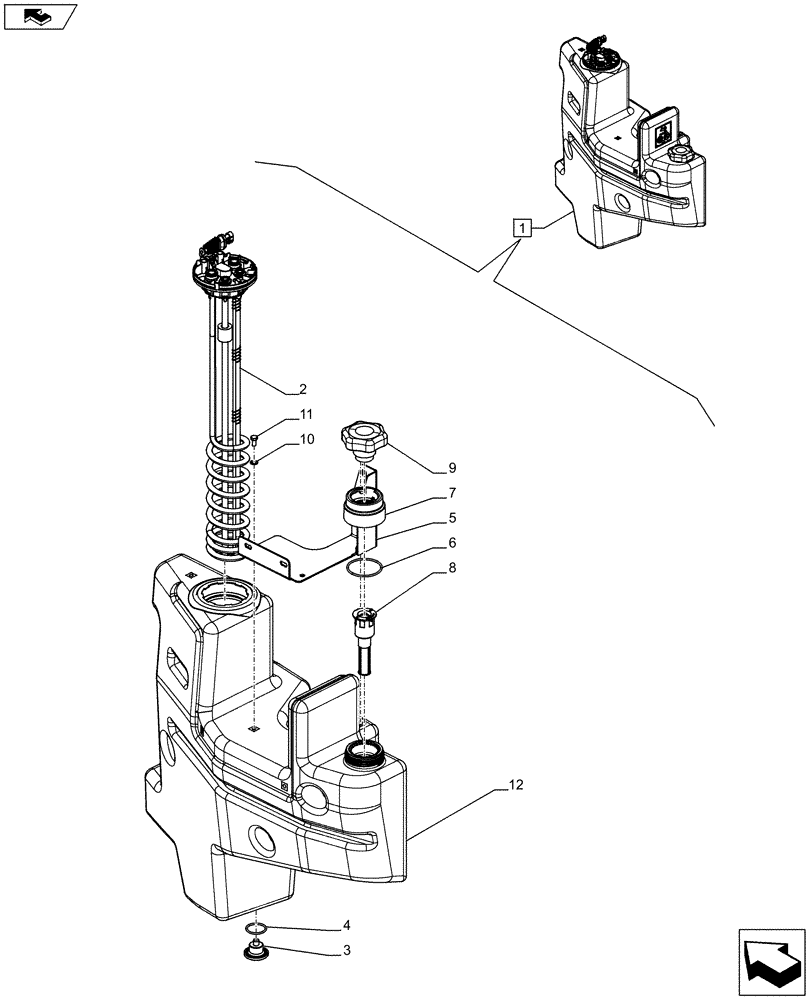

Запчасти Case IH PUMA 215 (10.216.01[03]) - FUEL TANK AND RELATED PARTS - BREAKDOWN (10) - ENGINE

1

84364734

EXHAUST FLUID TANK,56L

Contains Ref. 2-12

1шт.

2

47512672

GAUGE

1шт.

3

84180403

DRAIN PLUG

1шт.

4

84180404

O-RING,3.5mm Thk x 39.0mm ID

1шт.

5

84359649

BRACKET

1шт.

6

84284801

O-RING,3.53mm Thk x 75mm ID

1шт.

7

84236736

NECK FILLER

1шт.

8

84363730

FILTER STRAINER

1шт.

9

84206552

FILLER CAP,Male

1шт.

10

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

11

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

3шт.

12

NSS

NOT SOLD SEPARAT

1шт.
