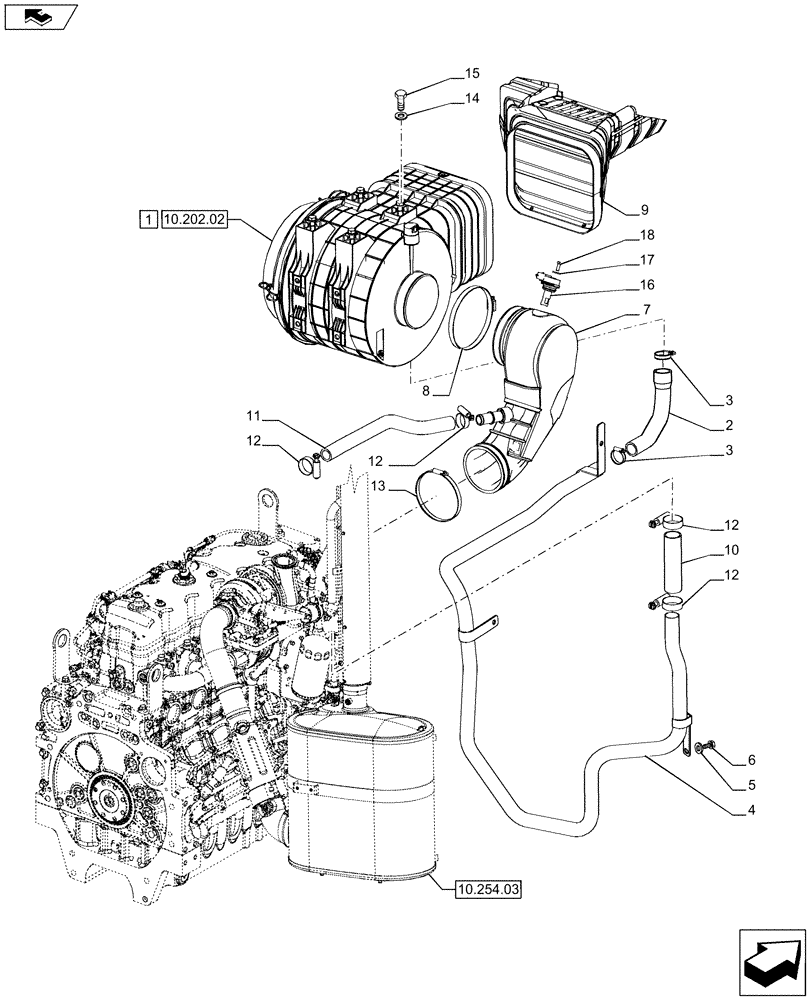

Запчасти Case IH PUMA 215 (10.202.01) - AIR CLEANER AND LINES (10) - ENGINE

1

87517150

AIR FILTER,127mm ID x 347mm OD x 481.5mm L

ASSY

1шт.

2

87399657

LARGE HOSE

Aspiration

1шт.

3

82039347

HOSE CLAMP,35mm - 50mm, Worm Gear

2шт.

4

84354708

HYD TUBE

Aspiration

1шт.

5

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

3шт.

6

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

3шт.

7

84312703

AIR INTAKE TUBE

1шт.

8

82038745

CLAMP,130mm - 150mm

1шт.

9

87392872

DUCT

Air Cleaner

1шт.

10

82036395

FLEXIBLE HOSE,33.00 mm ID x 140.00 mm

Aspiration

1шт.

11

84318288

LARGE HOSE

Air Intake

1шт.

12

82036709

HOSE CLAMP,25mm - 40mm, Worm Gear

4шт.

13

82036460

HOSE CLAMP,110mm - 130mm, Worm Gear

1шт.

14

140017

WASHER,M10 x 20mm OD x 2mm Thk

4шт.

15

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

4шт.

16

87482355

SENSOR

1шт.

17

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

2шт.

18

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.
