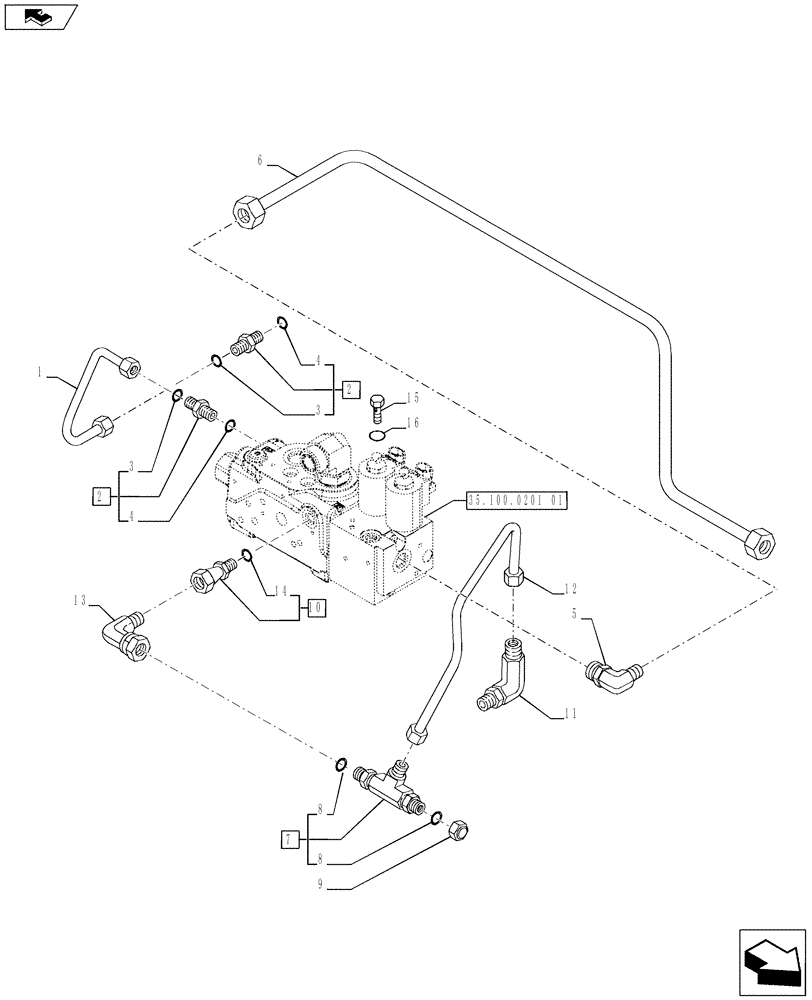

Запчасти Case IH PUMA 215 (35.100.04[04A]) - FRONT AXLE WITH ACTIVE SUSPENSIONS - LIFTER LINES - D7091(VAR.720463-720189-728484-743963-743964) (35) - HYDRAULIC SYSTEMS

1

87392512

PIPE

Priority Valve Drain

1шт.

2

5192291

HYD CONNECTOR,1" - 14 ORFS x M22 x 1.5 ORB

Contains Ref. 3,4

2шт.

Except for VAR.720819

1шт.

3

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

Except for VAR.720819

1шт.

4

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

Except for VAR.720819

1шт.

5

5185564

HYD CONNECTOR

1шт.

6

87396165

PIPE

13/16-16;18 x 1.5

1шт.

Only for VAR.720463-743963-743964

1шт.

7

81862791

VALVE,9/16" - 18 ORFS x 9/16" - 18 ORFS x 9/16" - 18 ORFS

9/16-18(3x), Contains Ref. 8

1шт.

8

81827528

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

9

5189973

PLUG

1шт.

10

47136376

HYD CONNECTOR

12 x 1.5;9/16-18, Incl.N14, Contains Ref. 14

1шт.

11

47126659

ELBOW,90 Deg, 9/16-18 ORFS x 7/16-20 ORB

1шт.

11

47135296

90 ELBOW,9/16"-18 x 7/16"-20

9/16-18;7/16-20

1шт.

12

87391558

PIPE

Load Sensing

1шт.

13

87391555

ELBOW

9/16-18; 12x1.5, Contains Ref. 14

1шт.

Only for VAR.720463-743963-743964

1шт.

13

82020198

ELBOW

1шт.

Except for VAR.720463-728212

1шт.

14

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

15

10185011

BANJO BOLT,M12 x 1.25 x 23mm

1шт.

Only for VAR.720463-743963-743964

1шт.

16

10287360

SEAL

12 x 18 x 1.5

2шт.

Only for VAR.720463-743963-743964

1шт.
