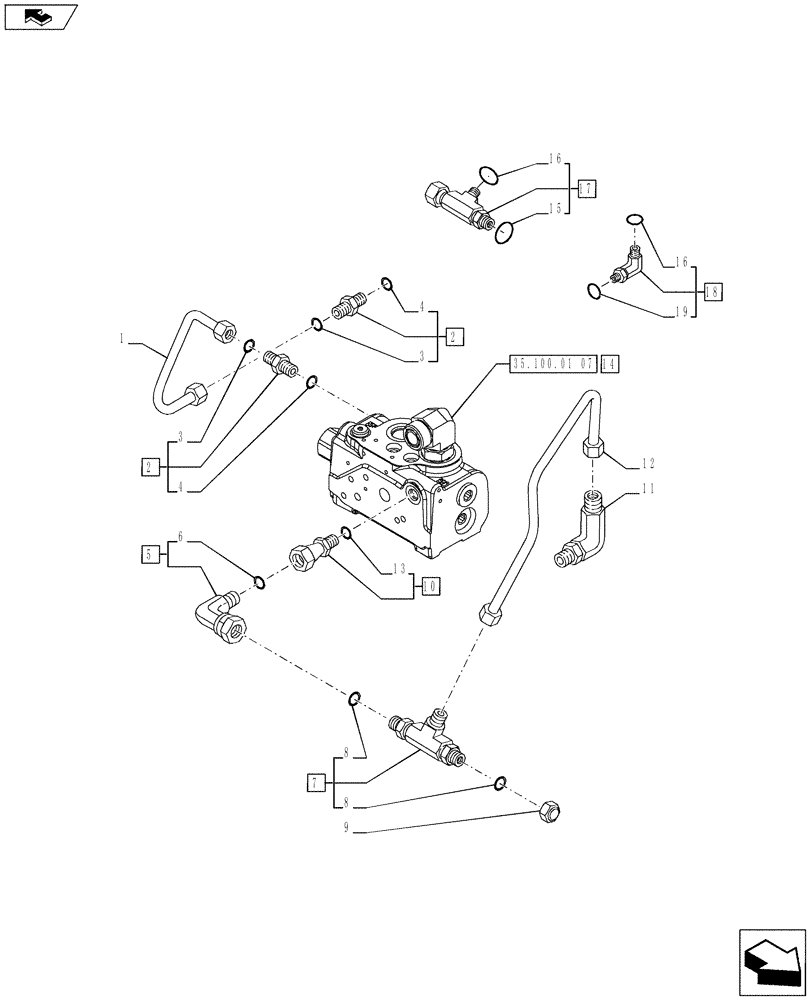

Запчасти Case IH PUMA 215 (35.100.01[04]) - HYDRAULIC PUMP - PRIORITY VALVE (VAR.728484) (35) - HYDRAULIC SYSTEMS

1

87392512

PIPE

Priority Valve Drain

1шт.

2

5192291

HYD CONNECTOR,1" - 14 ORFS x M22 x 1.5 ORB

Contains Ref. 3,4

2шт.

3

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

4

14438085

O-RING,19.3mm ID x 2.4mm

2шт.

5

82020198

ELBOW

9/16"-18 (2x)

1шт.

6

81844850

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

7

81862791

VALVE,9/16" - 18 ORFS x 9/16" - 18 ORFS x 9/16" - 18 ORFS

9/16"-18(3x)

1шт.

8

81827528

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

9

5189973

PLUG

1шт.

10

47136376

HYD CONNECTOR

M12 x 1.5;9/16"-18

1шт.

11

47135296

90 ELBOW,9/16"-18 x 7/16"-20

9/16"-18;7/16"-20

1шт.

12

87391558

PIPE

Load Sensing

1шт.

from Priority Valve to Pump Compensator

1шт.

13

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

14

87555077

HYDRAULIC VALVE

1шт.

15

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

1шт.

16

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

2шт.

Only for VAR.728484 RH Lift and Top Link Hydraulic Adjust with Elec. Control

1шт.

17

5197273

HYD CONNECTOR,1' 3/16-12 x 83.6mm

1 - 3/16"-12(2x); 13/16"-16, Contains Ref. 15-16

1шт.

Only for VAR.728484 RH Lift and Top Link Hydraulic Adjust with Elec. Control

1шт.

18

5185052

90 ELBOW,13/16"-16 x M18 x 1.5

13/16"-16;18x1.5, Contains Ref. 16,19

1шт.

Only for VAR.728484 RH Lift and Top Link Hydraulic Adjust with Elec. Control

1шт.

19

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

Only for VAR.728484 RH Lift and Top Link Hydraulic Adjust with Elec. Control

1шт.
