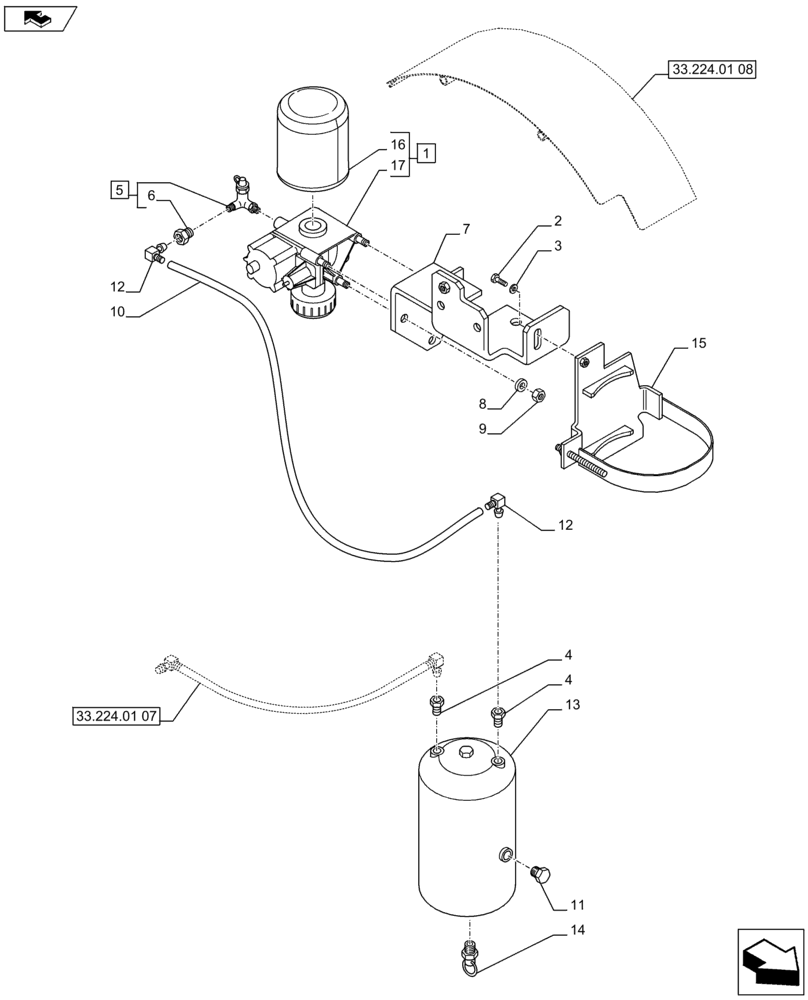

Запчасти Case IH PUMA 215 (33.224.01[05]) - PNEUMATIC TRAILER BRAKE - REGENERATION AIR DRYER, TANKS AND PIPES (VAR.729385-743170 / 743623; VAR.743171-728385 / 743624; VAR.743169-720178 / 743625) (33) - BRAKES & CONTROLS

1

84170919

RECEIVER-DRYER

ASSY, Incl 16, 17

1шт.

2

11106421

SCREW,Hex, M10 x 1.5 x 30mm, Cl 8.8

1шт.

3

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

4

82036156

FITTING,M22 x 1.5 x NG12

2шт.

5

87345151

HYD CONNECTOR,M22 x 1.5

Contains Ref. 6

1шт.

6

82034157

ADAPTER

1шт.

7

84248386

BRACKET

1шт.

8

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

3шт.

9

11702911

NUT,M12, Cl 8, ZND

3шт.

10

84181253

FLEXIBLE HOSE,14.00mm ID x 616.00mm

Contains Ref. 12, Dryer to Reservoir

1шт.

11

82014913

PLUG,M22 x 1.5 x 9mm L

1шт.

12

82038453

HYD CONNECTOR,232 NG12 x 16mm D

2шт.

13

84170918

AIR RESERVOIR

1шт.

14

82004266

DRAIN

1шт.

15

84286331

SUPPORT

1шт.

16

87638772

CARTRIDGE,165mm L

Incl in 1, 165mm

1шт.

17

NSS

NOT SOLD SEPARAT

Air Dryer, Incl in 1

1шт.
