Запчасти Case IH PUMA 215 (25.108.0104) - WHEEL HUB AND STEERING KNUCKLE (25) - FRONT AXLE SYSTEM

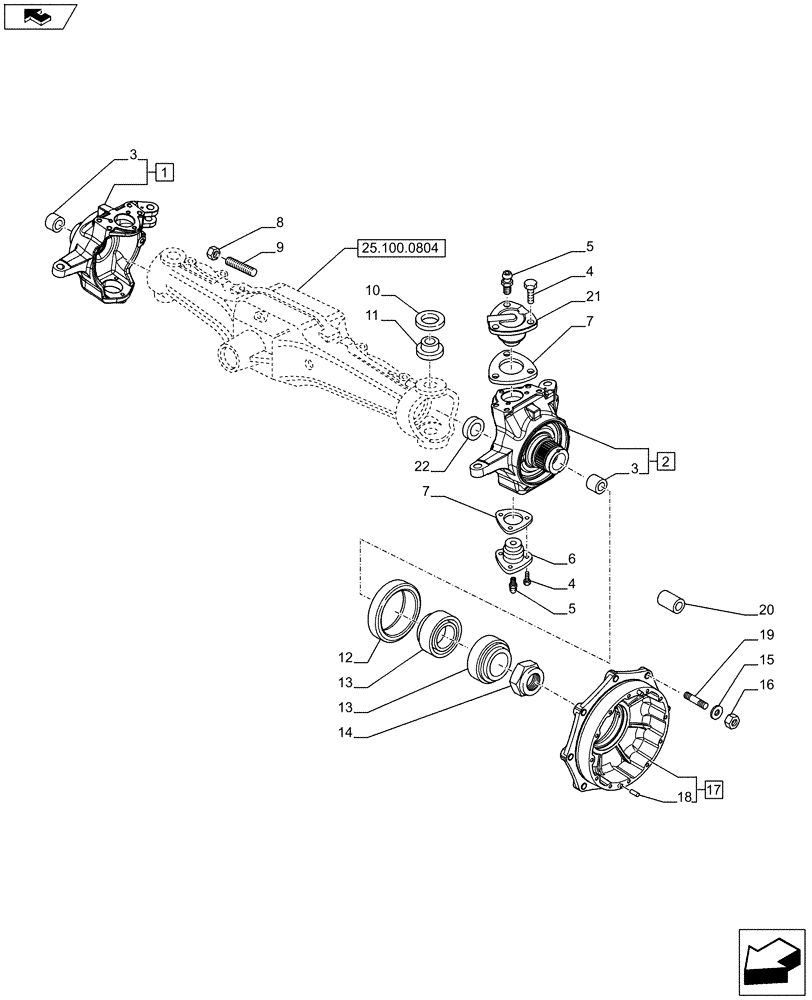

Схема запчастей Case IH PUMA 215 - (25.108.0104) - WHEEL HUB AND STEERING KNUCKLE (25) - FRONT AXLE SYSTEM
home
5
2
4
3
16
1
18
9
3
7
22
13
12
17
20
6
19
15
25.100.0804
21
1
7
8
10
13
4
1
5
14

Артикул

Название

Примечание

Количество

1

84188828

KNUCKLE,RH

RH, ASSY, Contains Ref. 3

1шт.

2

84188825

KNUCKLE,LH

LH, ASSY, Contains Ref. 3

1шт.

3

5104085

BUSHING,45mm ID x 50mm OD x 30mm L

45 x 50 x 30

2шт.

4

14254434

SCREW,Hex, M14 x 1.5 x 30mm, Cl 10.9, Full Thd

12шт.

5

13407211

LUBE NIPPLE,M10 x 1

3шт.

6

87382384

BALL STUD

2шт.

7

5137114

SHIM,70.5mm ID x 115mm OD x 0.1mm Thk

1шт.

7

5137115

SHIM,0.15mm Thk

1шт.

7

5137116

SHIM,70.5mm ID x 115mm OD x 0.2mm Thk

0.20 mm THK

1шт.

7

5137117

SHIM,70.5mm ID x 115mm OD x 0.25mm Thk

0.25 mm THK

1шт.

7

5137118

SHIM,70.5mm ID x 115mm OD x 0.3mm Thk

0.30 mm THK

1шт.

8

10717624

THIN NUT,Thin, M18 x 2.5, Cl 05

2шт.

9

87751874

ADJUSTMENT SCREW,M18 x 120mm, Cl 10.9

2шт.

10

5121907

SEAL,70mm ID x 90mm OD x 11mm Thk

3шт.

11

5119660

BALL JOINT,40mm ID x 80mm OD x 24.75mm W

3шт.

12

87355801

SEAL,190mm ID x 220mm OD x 17mm Thk

190X220X15/17

2шт.

13

5133737

ROLLER BEARING,109.5mm ID x 158.75mm OD x 23mm W

109.538 x 158.750 x 23.02

4шт.

14

5141692

NUT,M90 x 2

M90x2

2шт.

15

5100516

WASHER,17mm ID x 32mm OD x 5mm Thk

16шт.

16

10790524

NUT,M16 x 1.5

16шт.

17

87543151

HUB

Contains Ref. 18

2шт.

18

4985063

DOWEL,12mm OD x 20mm L

4шт.

19

87618916

STUD

16шт.

20

87671955

CAP,15.50mm ID x 22.00mm OD x 40.00mm

16шт.

21

87382381

BALL STUD

1шт.

22

84166643

SEAL,45mm ID x 65mm OD x 27mm Thk

2шт.

Выбрано товаров: 26
