Запчасти Case IH PUMA 215 (23.101.01) - 4WD DRIVE SHAFT (23) - FOUR WHEEL DRIVE SYSTEM

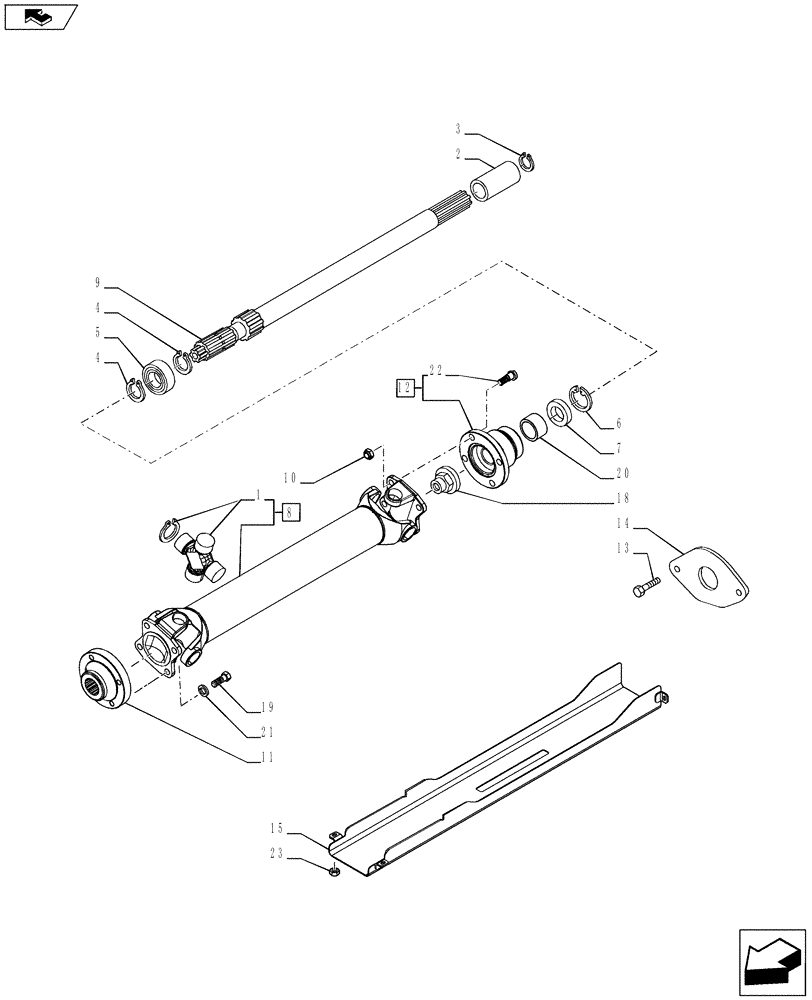

Схема запчастей Case IH PUMA 215 - (23.101.01) - 4WD DRIVE SHAFT (23) - FOUR WHEEL DRIVE SYSTEM
14
1
15
7
21
18
10
6
home
4
8
11
13
4
19
9
20
22
12
2
3
23
5

Артикул

Название

Примечание

Количество

1

87393885

SPIDER

2шт.

2

5172239

SPLINED COUPLING,12T

1шт.

3

11058876

SNAP RING,M30, Int

1шт.

4

11068876

SNAP RING,M40, Ext

2шт.

5

20915780

BALL BEARING,40mm ID x 80mm OD x 18mm W

40 x 80 x 18

1шт.

6

11061976

SNAP RING,M80, Int

1шт.

7

47134818

SEAL,40mm ID x 80mm OD x 15mm Thk

40 x 80 x 14/15

1шт.

8

87671727

DRIVE SHAFT

ASSY, Contanis Ref. 1

1шт.

9

87599004

DRIVE SHAFT

1шт.

10

82936516

LOCK NUT,7/16"-20

4шт.

11

87309421

FLANGE

With threaded holes for bolts

1шт.

12

47135489

SPLINED COUPLING

ASSY, Contanis Ref. 16

1шт.

13

15970624

BOLT,Hex, M10 x 1.25 x 22mm, Cl 8.8, Full Thd

2шт.

14

47135527

FLANGE

1шт.

15

87389039

SHIELD

1шт.

16

11198174

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 2.2mm Thk

4шт.

17

82019896

FLANGE BOLT,Hex, M8 x 1.5 x 16mm, Piloted

2шт.

18

5111953

NUT,M24 x 1.5

1шт.

19

87601117

BOLT,Hex, 7/16" - 20 x 1-1/4"

4шт.

20

47135379

SPACER,34.6mm ID x 45mm OD x 26mm L

1шт.

21

83935787

LOCK WASHER,7/16"

4шт.

22

87550808

PIN,12.5mm OD x 37mm L

4шт.

23

14059311

FLANGE NUT,M8 x 1.25, Flg, Cl 8

2шт.

Выбрано товаров: 23
