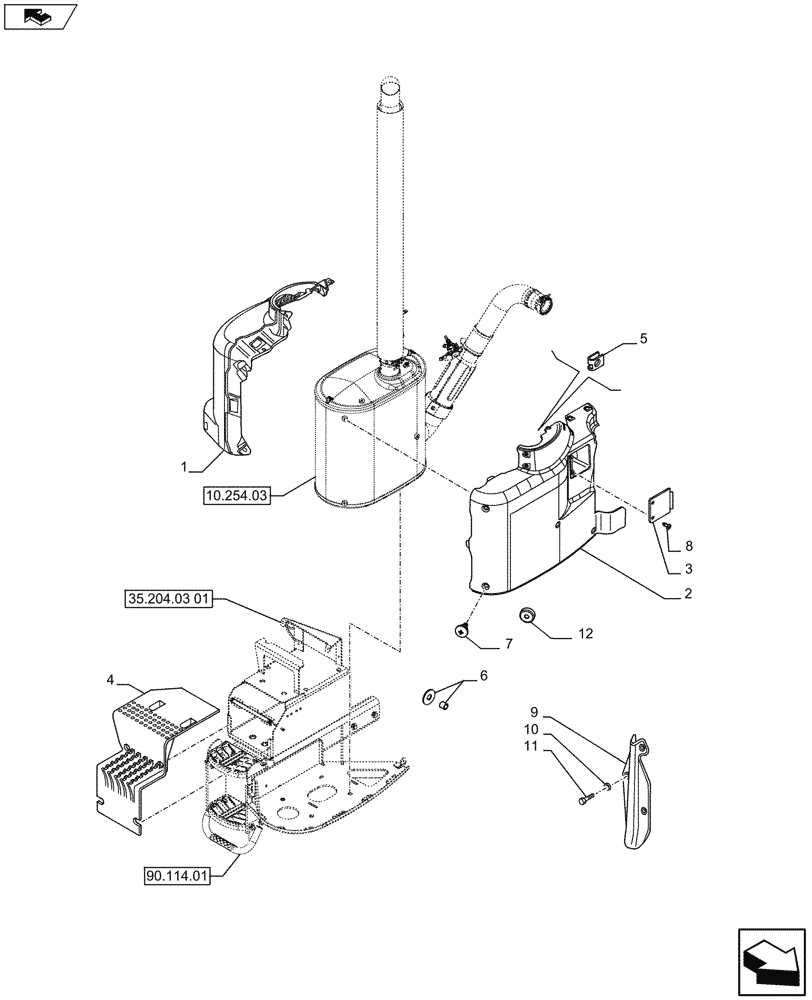

Запчасти Case IH PUMA 215 (90.160.0401) - PROTECTION FOR EXHAUST AND STEP (VAR.743817) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84403575

PROTECTIVE COVER

Rear

1шт.

2

84403576

PADDING

Front

1шт.

3

84301097

SOFT TRIM

1шт.

4

84370309

STEP

1шт.

5

14189071

SPRING NUT,M6

NUT

10шт.

6

84349035

BUSHING

Thermal Insulation

7шт.

7

84348915

SCREW,Pan Hd Phil, M6 x 20mm, w/Thermal Insulator

Thermal Insulation

21шт.

8

16089877

SCREW,Spcl Tap, Pan Hd Phil, M4.50mm x 2.5 x 12mm

4,5 x 12

2шт.

9

84493346

COVER

1шт.

10

14371071

SPRING NUT,M5, 12mm W x 20.3mm OAL

3шт.

11

1983571

HEX SOC SCREW,M5 x 12mm, Cl 10.9

3шт.

12

84399494

WASHER

1шт.
