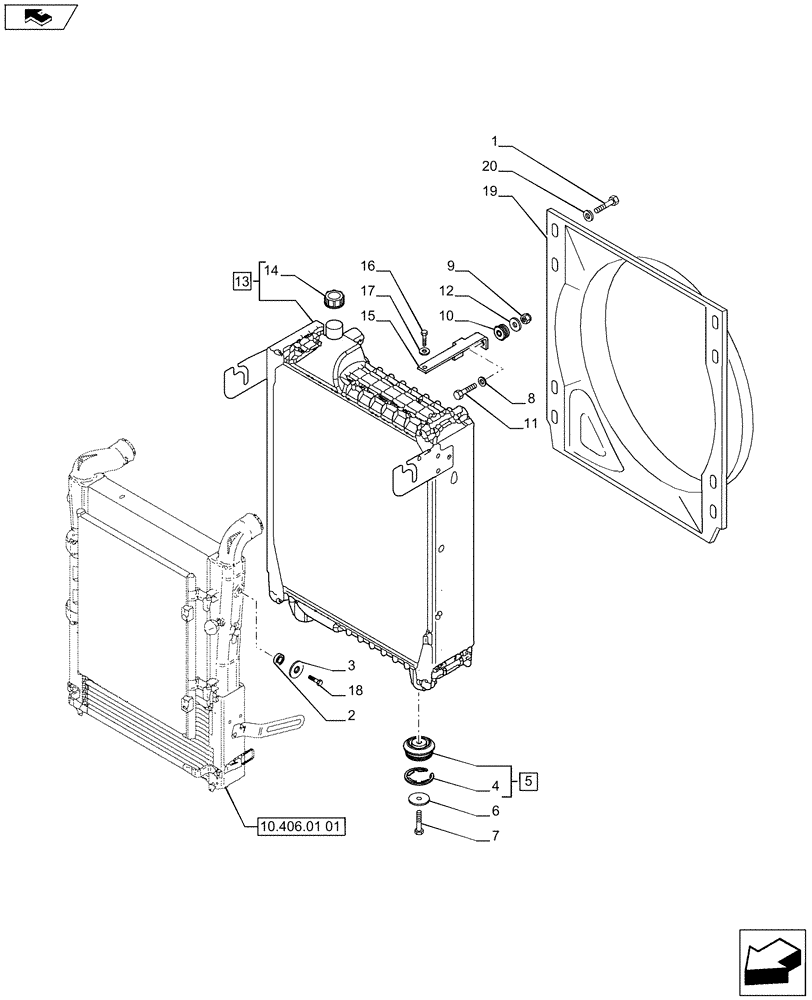

Запчасти Case IH PUMA 215 (10.406.01[02]) - RADIATOR, COOLING SYSTEM AND RELATED PARTS - C7127 (10) - ENGINE

1

87377778

SCREW,Hex, M6 x 16mm, Cl 8.8

8шт.

2

87385194

ROLLER BEARING,8mm ID x 16mm OD x 5mm W

2шт.

3

87385196

WASHER,8.5mm ID X 25mm OD X 2mm

2шт.

4

82033528

SNAP RING,55mm ID

1шт.

5

82023389

ISOLATOR,67mm OD x 35.5mm L

Contains Ref. 4

2шт.

6

5102702

WASHER,10.5mm ID x 45mm OD x 3mm Thk

2шт.

7

9602206

SCREW,Hex, M10 x 1.25 x 50mm, Cl 8.8

2шт.

8

85700654

WASHER,10.5mm ID x 20mm OD x 2.5mm Thk

1шт.

9

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

1шт.

10

82009429

ISOLATOR

1шт.

11

11098621

BOLT,Hex, M10 x 45mm, Cl 8.8, Full Thd

1шт.

12

83904166

WASHER,10.5mm ID x 30mm OD x 4mm Thk

1шт.

13

84249170

RADIATOR

Contains Ref. 14

1шт.

Only for PUMA 170, PUMA 185

1шт.

13

84249173

RADIATOR

Contains Ref. 14

1шт.

Only for PUMA 200, PUMA 215

1шт.

14

87306788

RADIATOR CAP

1шт.

15

87308170

BAR

1шт.

16

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

1шт.

17

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

1шт.

18

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

19

87565399

SHROUD

1шт.

20

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

8шт.
