Запчасти Case IH PUMA 215 (90.120.07) - SEAT - PASSENGER SEAT (VAR.743430-743066) - C9014 (90) - PLATFORM, CAB, BODYWORK AND DECALS

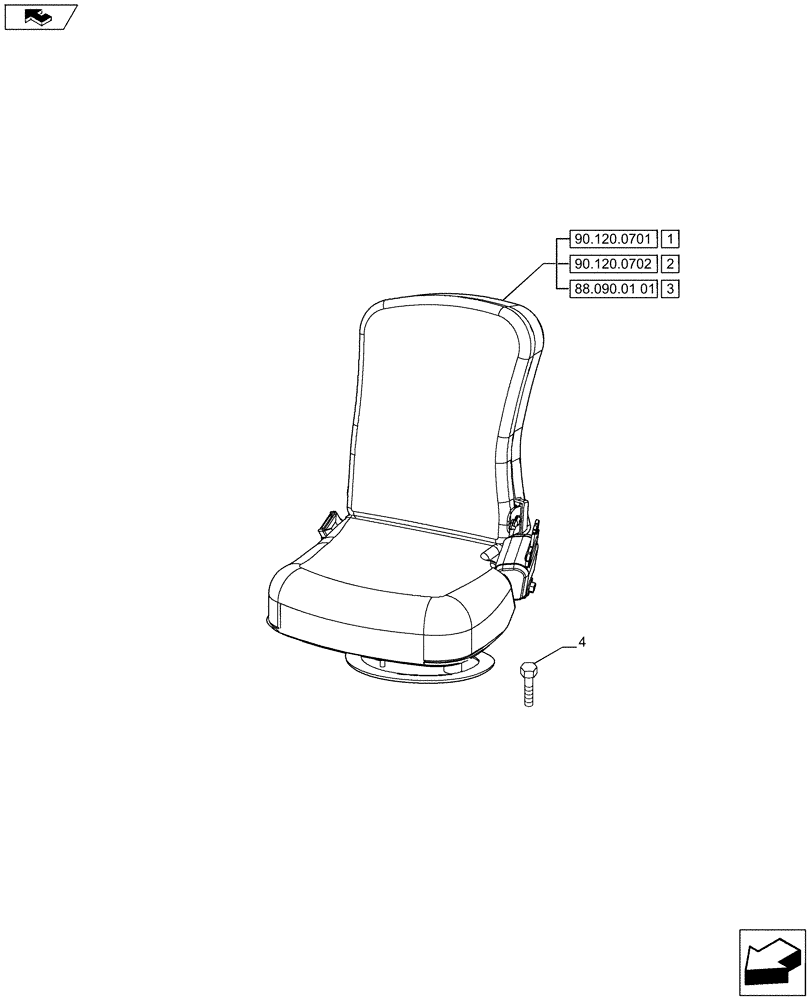

Схема запчастей Case IH PUMA 215 - (90.120.07) - SEAT - PASSENGER SEAT (VAR.743430-743066) - C9014 (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
1
90.120.0701
home
90.120.0702
2
4
88.090.01 01

Артикул

Название

Примечание

Количество

1

84146846

ASSY

1шт.

Left Side Passenger Seat with Seat Belt, VAR.743430

1шт.

2

84146849

ASSY

1шт.

Left Side Leather Passenger Seat with Seat Belt, VAR.743066

1шт.

Requires Driver's Seat in Leather, VAR.728319

1шт.

Made in UK Models only

1шт.

3

87487002

SEAT

1шт.

Left Side Passenger Seat with Seat Belt, VAR.743430

1шт.

Parts Shown Are Also Available in DIA Kit 710036074

1шт.

4

16287121

BOLT,Hex, M8 x 20mm, Cl 8.8, Full Thd

6шт.

4

84187826

FLANGE BOLT,Torx Rnd Hd, M8 x 20mm, Cl 8.8, Full Thd

M 8 x 20

6шт.

Parts Shown Are Also Available in DIA Kit 710036074

1шт.

Выбрано товаров: 12
