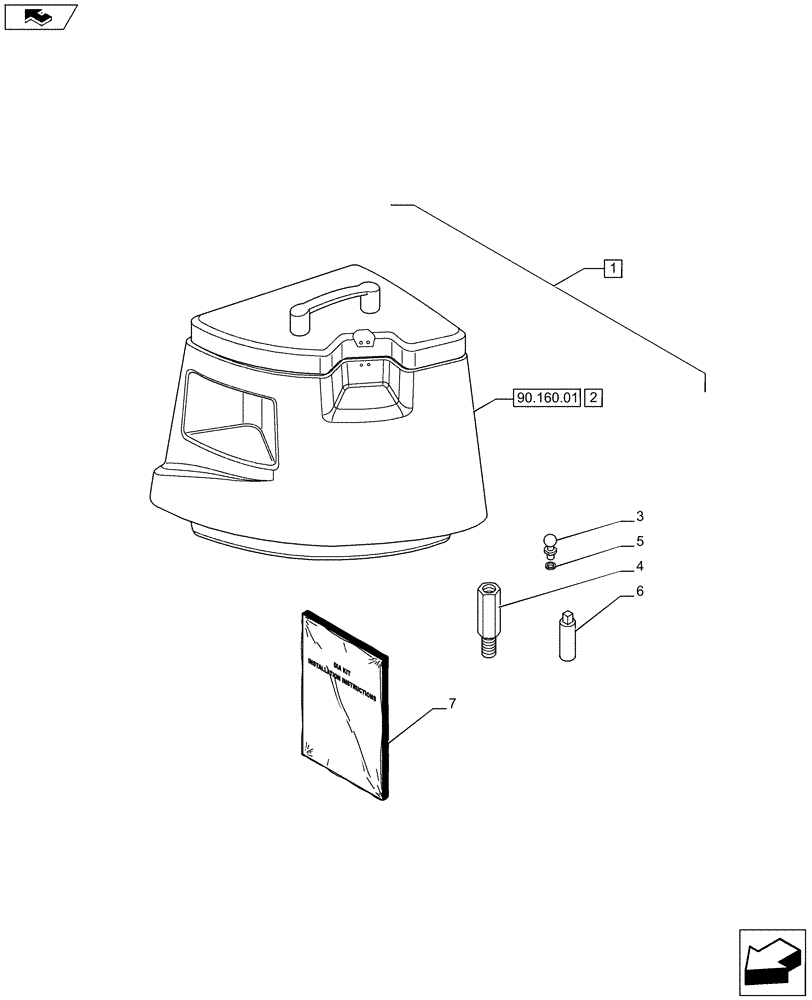

Запчасти Case IH PUMA 215 (88.090.05) - DIA KIT - STORAGE BOX (88) - ACCESSORIES

1

718577024

DIA KIT, TRACTOR

Storage Box, Contains Ref. 2-6 & Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

87704352

BOXED PANEL

ASSY

1шт.

3

87301896

BALL STUD,M8 x 1.25 x 34.5mm

BALL PIN

3шт.

4

82033873

SPACER,M8 x 1.25 x 33mm x 50.5mm, ZND

33MM

1шт.

4

82033874

SPACER,M8 x 1.25 x 26.5mm x 50.5mm, ZND

26,5MM

1шт.

5

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

3шт.

6

87671655

CAP

1шт.

7

84147284

INSTRUCTION

1шт.
