(88.090.01[01]) - DIA KIT - PASSENGER SEAT WITH BELTS

Запчасти Case IH PUMA 215 (88.090.01[01]) - DIA KIT - PASSENGER SEAT WITH BELTS (88) - ACCESSORIES

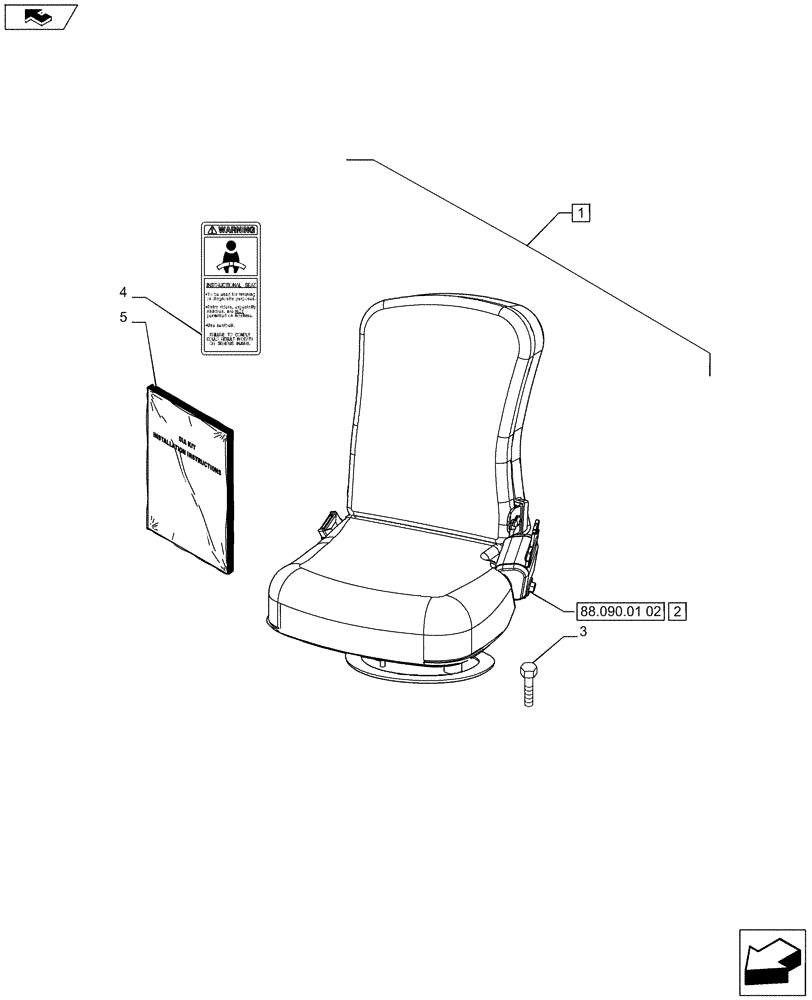

Схема запчастей Case IH PUMA 215 - (88.090.01[01]) - DIA KIT - PASSENGER SEAT WITH BELTS (88) - ACCESSORIES
88.090.01 02
home
5
1
4
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

710036074

DIA KIT, TRACTOR

Instructional Seat, Contains Ref. 2-4 & Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

87487002

SEAT

ASSY

1шт.

3

84187826

FLANGE BOLT,Torx Rnd Hd, M8 x 20mm, Cl 8.8, Full Thd

M 8 x 20

6шт.

4

82030479

DECAL

English

1шт.

4

82030441

DECAL

French

1шт.

4

82030480

DECAL

Spanish

1шт.

5

84147891

INSTRUCTION

1шт.
