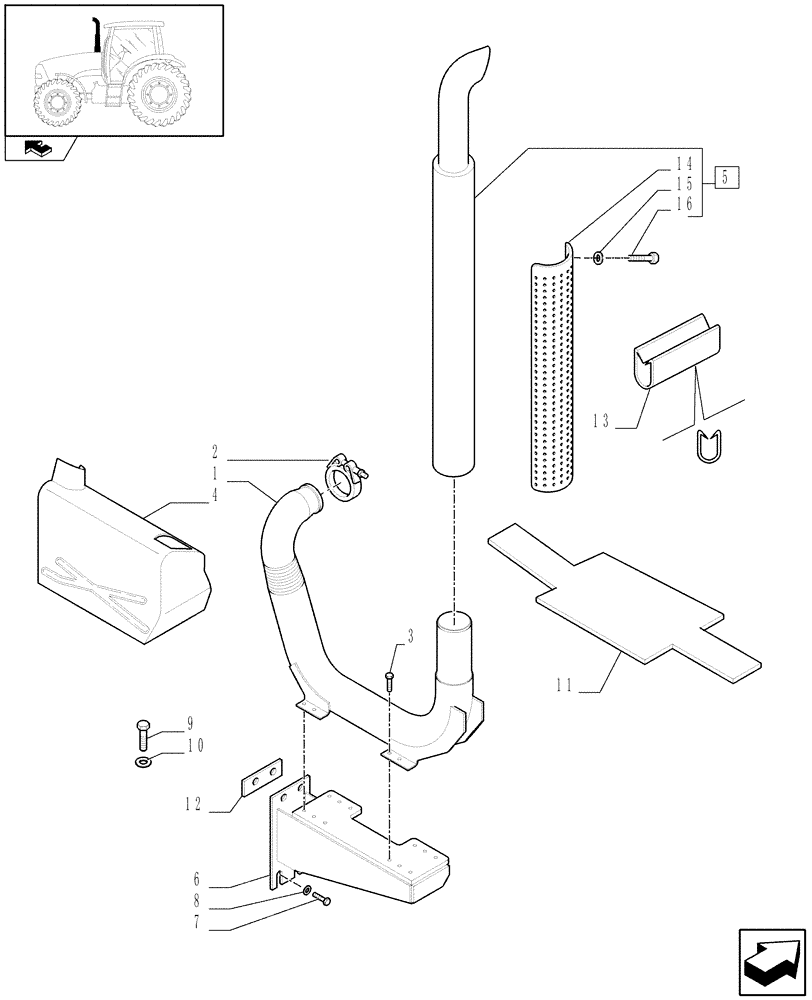

Запчасти Case IH PUMA 210 (1.15.1) - SILENCER (02) - ENGINE EQUIPMENT

1

87570394

EXHAUST SYSTEM PIPE

1шт.

2

87524289

CLAMP,81mm

1шт.

2

9711034

CLAMP,85.09mm ID

1шт.

3

14432334

HEX SOC SCREW,M10 x 1.5 x 22mm, Cl 10.9, Full Thd

8шт.

4

87591252

OUTER SHIELD

1шт.

5

87396433

MUFFLER,W/ Spark Arrester, Aspirated

1шт.

6

87568617

SUPPORT

1шт.

7

11124874

BOLT,Hex, M20 x 55mm, Cl 12.9

4шт.

8

82028022

WASHER,M8 x 1.25 ID x 40mm OD x 9mm Thk, CRLC or HRLC Steel

4шт.

9

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

5шт.

10

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

5шт.

11

87590157

DEFLECTOR

1шт.

12

87569642

PLATE

1шт.

Basildon Production Models only

1шт.

13

83964601

MOLDING,164mm L

1шт.

14

84203727

SHIELD

1шт.

15

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

8шт.

16

14759521

SCREW,M6 x 14mm

8шт.
