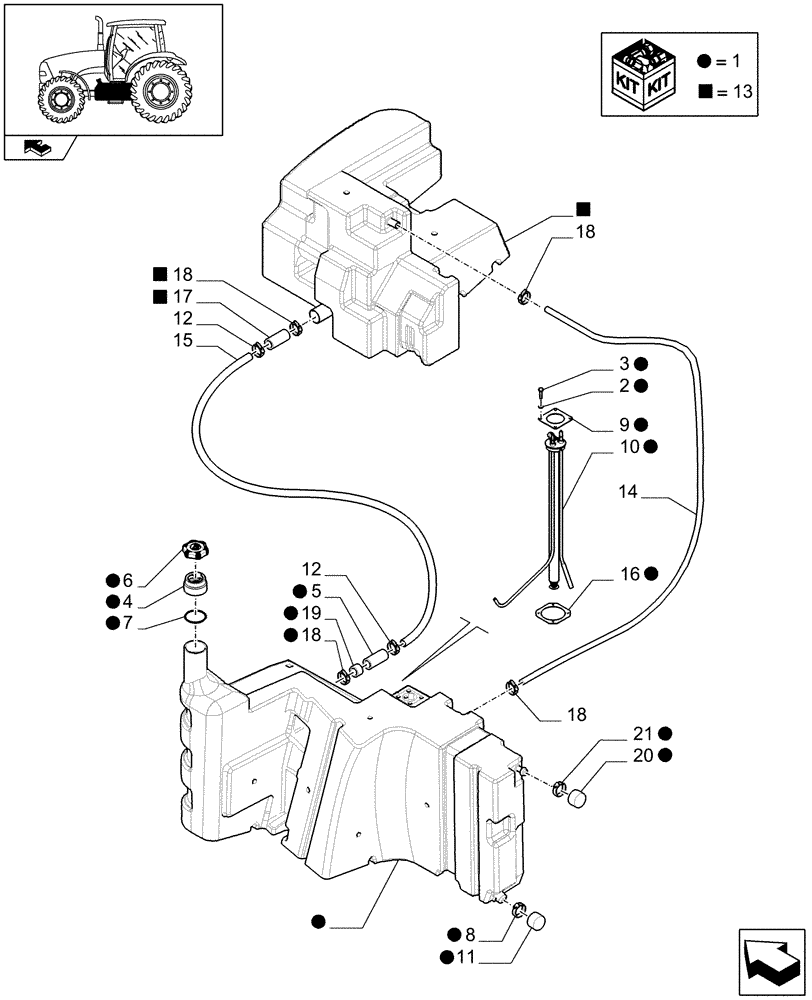

Запчасти Case IH PUMA 210 (1.14.0[01A]) - FUEL TANK - D7389 (02) - ENGINE EQUIPMENT

1

47478581

FUEL TANK

Main, 300 lt

1шт.

2

10615479

LOCK WASHER,6.4mm ID x 11mm OD x 0.7mm Thk

4шт.

3

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4шт.

4

84236742

NECK FILLER

1шт.

5

87387657

TUBE

1шт.

6

84547727

FILLER CAP,M59, Vented

Less Locking Cap

1шт.

7

84284801

O-RING,3.53mm Thk x 75mm ID

1шт.

8

82012726

HOSE CLAMP,38mm - 50mm, Worm Gear

1шт.

9

87586744

RETAINER,64mm ID x 90mm L x 90mm W x 4mm Thk

1шт.

10

47463452

FUEL GAUGE

Float ASSY

1шт.

11

83998666

CAP

1шт.

12

82039343

HOSE CLAMP,16mm - 27mm

2шт.

13

87546879

FUEL TANK

Aux, 110 lt

1шт.

14

82034051

FUEL HOSE,15.90 mm ID x 770.00 mm

Fuel Breather Line

1шт.

15

87312660

TUBE,38, 48 mm OD x 483, 100 mm L

Main to Aux. Line

1шт.

16

NSS

NOT SOLD SEPARAT

1шт.

17

87387657

TUBE

1шт.

18

82036462

CLAMP,50mm - 70mm

4шт.

19

87587056

SLEEVE,38.5mm ID x 41.5mm OD x 40mm L

1шт.

20

83952371

CAP,15mm ID X 25mm

1шт.

21

82012719

CLAMP,15mm - 24mm, Worm Gear

1шт.
