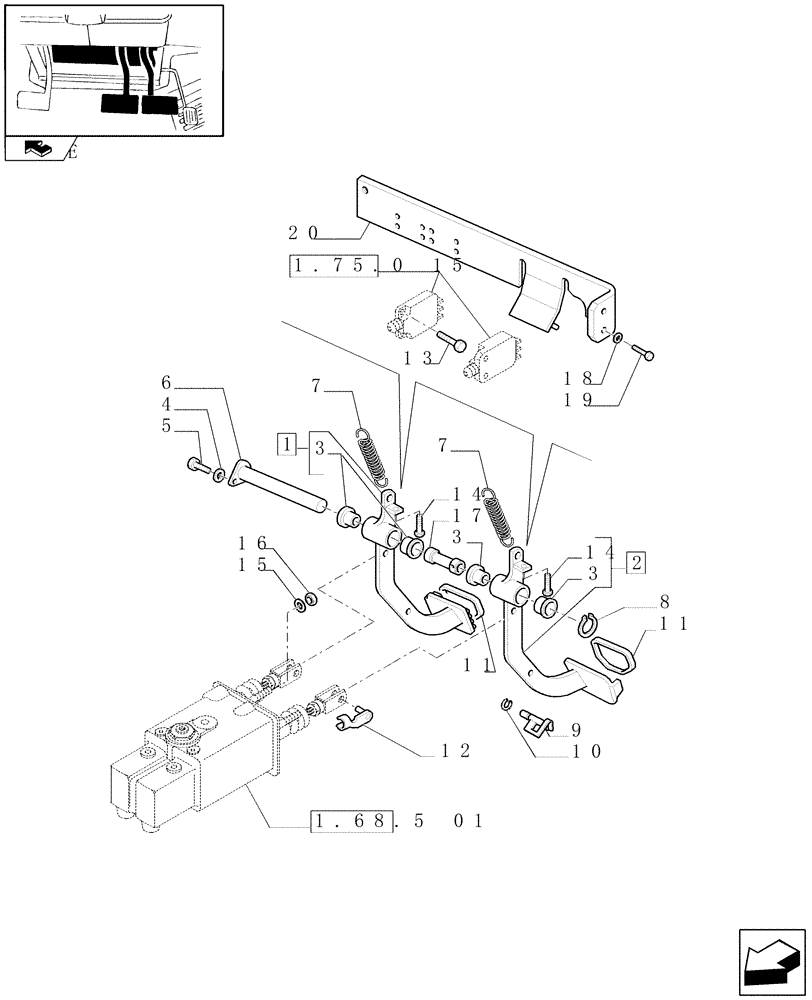

Запчасти Case IH PUMA 210 (1.95.0) - BRAKE PEDALS (10) - OPERATORS PLATFORM/CAB

1

87547098

PEDAL

RH, Incl.3, 14, 11

1шт.

2

87547097

PEDAL

LH, Incl.3, 14, 11

1шт.

3

5155548

BUSHING,25mm ID x 31.05mm OD x 32mm L

4шт.

4

10615479

LOCK WASHER,6.4mm ID x 11mm OD x 0.7mm Thk

1шт.

5

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

1шт.

6

82022428

SHAFT,20mm ID x 25mm OD x 348mm L

1шт.

7

5153180

SPRING,21mm OD x 84mm L

2шт.

8

83937363

SNAP RING

1шт.

9

84209162

PIN,11.965mm OD x 70mm L

1шт.

10

11088180

CIRCLIP,M11, Stainless

1шт.

11

82025747

RUBBER PEDAL PAD

2шт.

12

87316560

PIN,10mm OD x 23mm L

2шт.

13

83963569

CAPTIVE WASHER SCREW,Pan Hd, M4 x 12mm, Cl 4.8

4шт.

14

14420271

HEX SOC SCREW,M10 x 1.5 x 30mm, Cl 12.9, Full Thd

2шт.

15

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

4шт.

16

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

4шт.

17

87310426

SPACER,32mm ID x 38mm OD x 134mm L

1шт.

18

10516674

LOCK WASHER,M8

3шт.

19

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

3шт.

20

84183613

SUPPORT

1шт.
