(1.94.2[01]) - HEATING/AIR CONDITIONING - FAN AND VENTILATION DUCTS

Запчасти Case IH PUMA 210 (1.94.2[01]) - HEATING/AIR CONDITIONING - FAN AND VENTILATION DUCTS (10) - OPERATORS PLATFORM/CAB

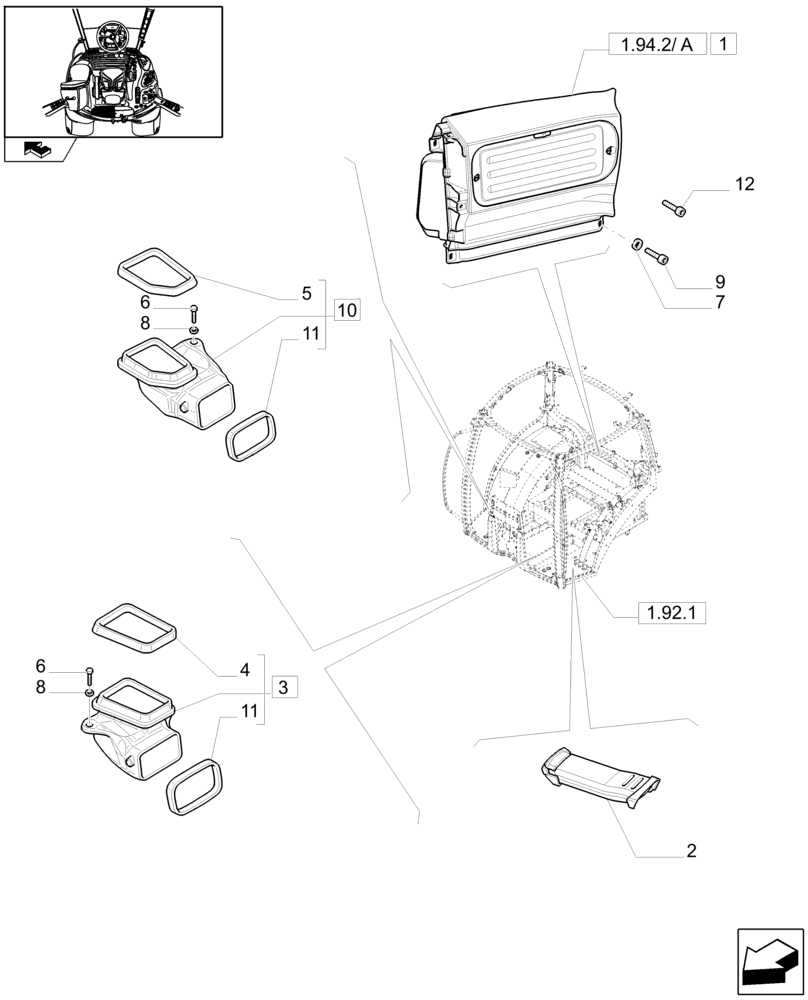

Схема запчастей Case IH PUMA 210 - (1.94.2[01]) - HEATING/AIR CONDITIONING - FAN AND VENTILATION DUCTS (10) - OPERATORS PLATFORM/CAB
10
8
5
8
1
9
6
home
4
2
7
6
12
1.94.2/ a
1
1.92.1
3
1
1
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87651396

BLOWER,12V

ASSY

1шт.

2

87301550

DUCT

LH

1шт.

3

87390278

DUCT

LH

1шт.

4

87523726

SEAL

LH

1шт.

5

87523583

SEAL

RH

1шт.

6

87578958

SELF-TAP SCREW,M6.3 x 1.8 x 25mm

RH, M6.3 x 25

2шт.

7

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

2шт.

8

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

2шт.

9

83962783

SCREW,Pozidriv Pan Hd, M6 x 20mm, Cl 4.8, Full Thd

, Serial Range: -C7254

2шт.

10

87518106

DUCT

RH

1шт.

11

87523573

SEAL

2шт.

12

13276617

SCREW,Pozidriv Pan Hd, M6 x 25mm, Cl 5.8, Full Thd

, Start Serial: D7254

2шт.
