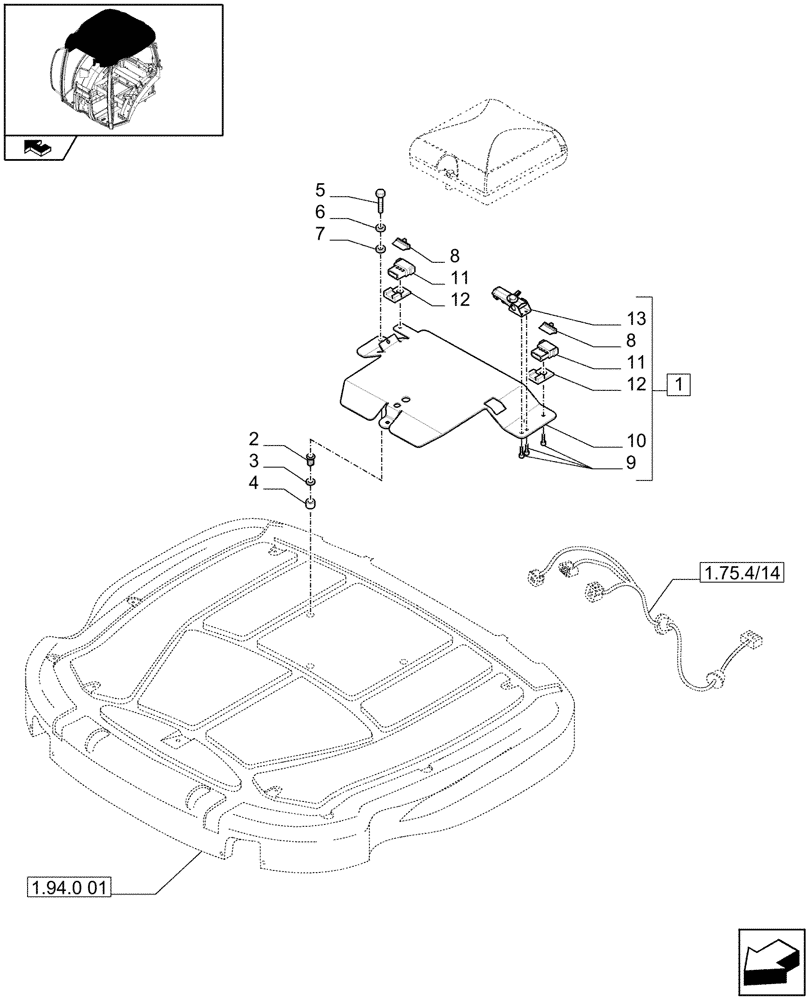

Запчасти Case IH PUMA 210 (1.94.0/04[01A]) - (VAR.190-330-331-332-348) AUTOGUIDANCE SYSTEM READY - BRACKET - D7409 (10) - OPERATORS PLATFORM/CAB

1

47693908

BRACKET

ASSY, Incl 8 - 13

1шт.

2

87652569

INSERT,M6 x 14 mm L

3шт.

3

81869856

WASHER,6mm ID x 17mm OD

3шт.

4

82034114

SPACER,M6 x 25mm L

3шт.

5

10902434

SCREW,Hex, M6 x 20mm, Cl 10.9, Full Thd

3шт.

6

12647607

WASHER,6.15mm ID x 16mm OD x 2mm Thk

3шт.

7

10615479

LOCK WASHER,6.4mm ID x 11mm OD x 0.7mm Thk

3шт.

8

87648972

WEDGE,Lock, Orange

2шт.

9

87308841

RIVET,Pop, 3.97mm OD x 10.79mm L

4шт.

10

NSS

NOT SOLD SEPARAT

Support, Incl in 1

2шт.

11

87641584

MULTIPOLE CONNECTOR,12 Pole

2шт.

12

87641585

MOUNTING PARTS

2шт.

13

NSS

NOT SOLD SEPARAT

Latch, Incl in 1

1шт.
