(1.93.3/ D[05]) - DELUXE SEAT WITH AIR SUSPENSION, BELT AND SWITCH - BREAKDOWN

Запчасти Case IH PUMA 210 (1.93.3/ D[05]) - DELUXE SEAT WITH AIR SUSPENSION, BELT AND SWITCH - BREAKDOWN (10) - OPERATORS PLATFORM/CAB

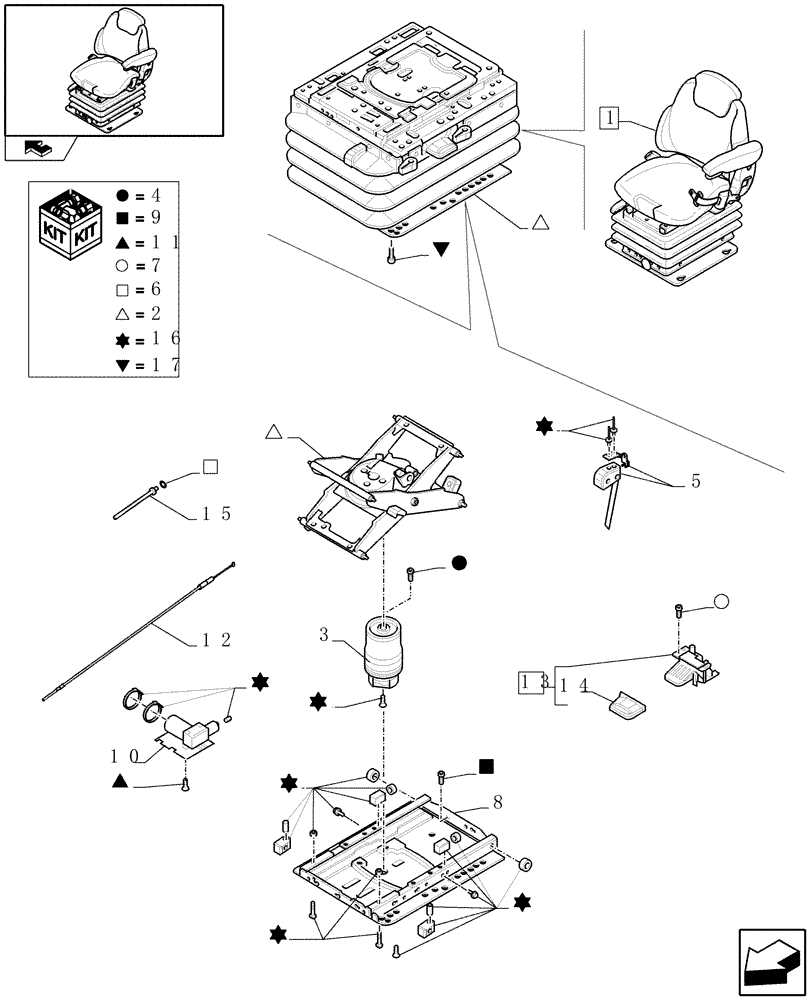

Схема запчастей Case IH PUMA 210 - (1.93.3/ D[05]) - DELUXE SEAT WITH AIR SUSPENSION, BELT AND SWITCH - BREAKDOWN (10) - OPERATORS PLATFORM/CAB
11
1
11
4
16
9
15
7
14
home
8
17
16
4
4
2
9
2
7
16
2
12
6
6
9
11
6
16
10
5
7
16
2
17
17
16
3
13
16
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84215889

DRIVER SEAT

ASSY, Incl. 2-17

1шт.

2

NSS

NOT SOLD SEPARAT

Suspension, ASSY, Incl. in 1, Incl. 17

1шт.

3

84190972

SHOCK ABSORBER

Incl. 4, 16

1шт.

4

84191012

REPAIR KIT

1шт.

5

84190962

KIT

Incl. 16

1шт.

6

84191016

REPAIR KIT

1шт.

7

84191017

REPAIR KIT

1шт.

8

84190976

PLATE

Incl. 9, 16

1шт.

9

84191014

REPAIR KIT

1шт.

10

84190980

AIR COMPRESSOR

Incl. 11, 16

1шт.

11

84191008

REPAIR KIT

1шт.

12

84190997

BOWDEN CONTROL

Incl. 7

1шт.

13

345107A1

LEVER

1шт.

14

84191000

HANDLE

Incl. 6

1шт.

15

84190991

TUBE

1шт.

15

84191077

TUBE

1шт.

16

84190975

REPAIR KIT

1шт.

17

84191020

REPAIR KIT

1шт.
