(1.93.3/ D[02]) - DELUXE SEAT WITH AIR SUSPENSION, BELT AND SWITCH - BREAKDOWN

Запчасти Case IH PUMA 210 (1.93.3/ D[02]) - DELUXE SEAT WITH AIR SUSPENSION, BELT AND SWITCH - BREAKDOWN (10) - OPERATORS PLATFORM/CAB

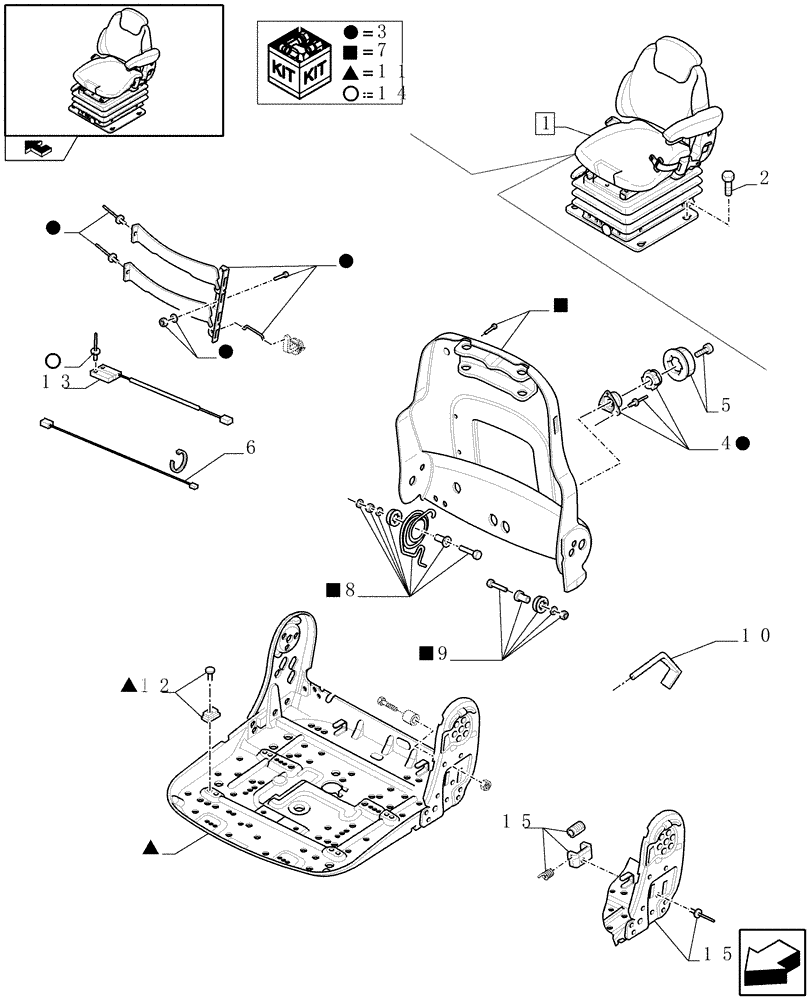

Схема запчастей Case IH PUMA 210 - (1.93.3/ D[02]) - DELUXE SEAT WITH AIR SUSPENSION, BELT AND SWITCH - BREAKDOWN (10) - OPERATORS PLATFORM/CAB
10
12
14
7
1
4
7
7
8
3
11
11
7
7
5
6
11
3
3
13
3
11
3
9
14
3
15
home
15
2
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84215889

DRIVER SEAT

ASSY

1шт.

2

84187826

FLANGE BOLT,Torx Rnd Hd, M8 x 20mm, Cl 8.8, Full Thd

4шт.

3

345767A1

SUPPORT

Incl. 4

1шт.

4

84191199

ACTUATOR

Incl. 5

1шт.

5

82034964

HANDLE

1шт.

6

84191186

WIRE HARNESS

1шт.

7

84191121

BACKREST

1шт.

8

84191131

SET OF PARTS

1шт.

9

84191196

SET OF PARTS

1шт.

10

82034960

LEVER

1шт.

11

84191188

REPAIR KIT

1шт.

12

84191178

SET OF PARTS

1шт.

13

84191187

SWITCH

Incl. 14

1шт.

14

84191201

SET OF PARTS

1шт.

15

82034946

SERVICE KIT

1шт.

16

84223027

SWITCH

1шт.
