Запчасти Case IH PUMA 210 (1.93.3/01B[03]) - DELUXE SEAT WITH REELING SEAT BELT - BREAKDOWN (10) - OPERATORS PLATFORM/CAB

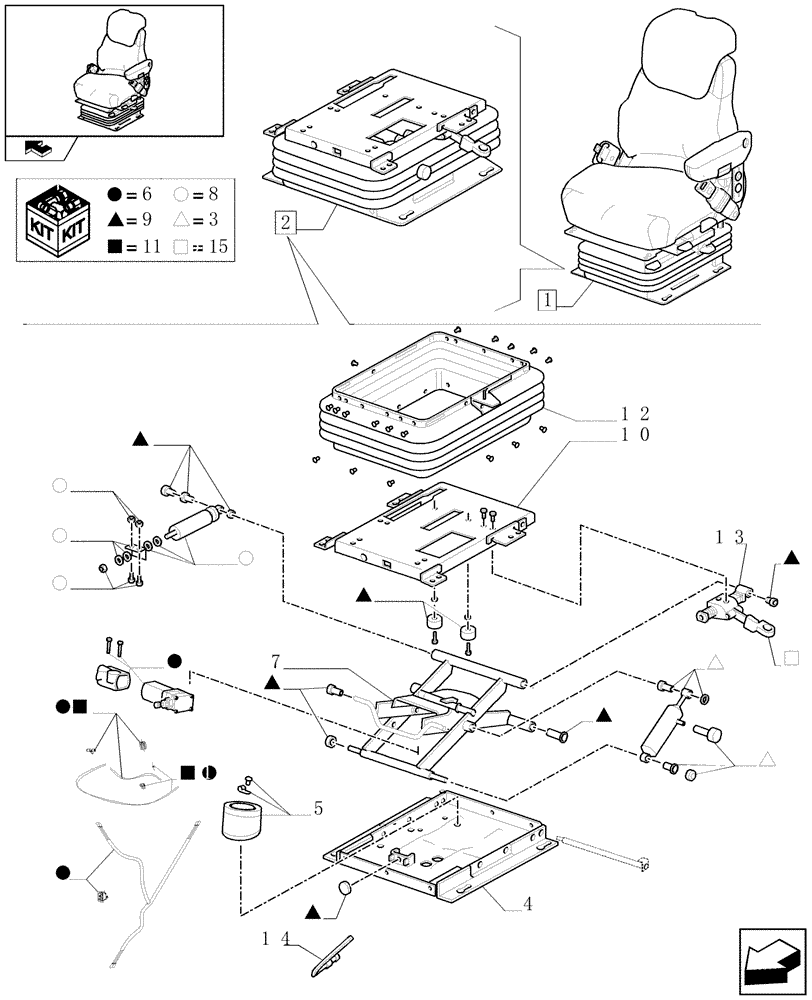

![Схема запчастей Case IH PUMA 210 - (1.93.3/01B[03]) - DELUXE SEAT WITH REELING SEAT BELT - BREAKDOWN (10) - OPERATORS PLATFORM/CAB](https://partsell.ru/storage/images/caseih/426008.png)
6
14
8
3
8
6
6
9
6
5
8
9
9
1
8
6
11
9
9
7
11
11
13
10
9
15
3
2
3
8
3
1
15
9
4
5
6
1
1
12
8
9
№
Артикул
Название
Примечание
Количество
1
84155767
SEAT
1шт.
For Electrohydraulic Remotes Models only
1шт.
1
84171082
DRIVER SEAT
1шт.
For Mechanical Remotes Models only
1шт.
2
87529810
SUSPENSION
Suspension ASSY
1шт.
3
82020847
KIT
Suspension Shock Absorber
1шт.
4
87529828
HOUSING
Lower Housing
1шт.
6
82030804
KIT
Compressor W/Heating
1шт.
7
82020846
KIT
Suspension Scissors
1шт.
8
82020830
SERVICE KIT
Suspension Fore/Aft Damper
1шт.
9
82020845
SERVICE KIT
Bumper and Roller
1шт.
10
82020844
KIT
Upper Housing
1шт.
11
87529817
KIT
Air Line
1шт.
12
82020843
KIT
Suspension Boot
1шт.
87347976
SERVICE KIT
Suspension Boot Clips
1шт.
13
82021020
SERVICE KIT
Fore/Aft Isolator
1шт.
14
87529792
HARNESS
1шт.
15
82020839
KIT
Knobs
1шт.
Выбрано товаров: 19
