(1.93.0/04[01A]) - (VAR.671) FRONT LEFT CAB STORAGE BOX - D9014

Запчасти Case IH PUMA 210 (1.93.0/04[01A]) - (VAR.671) FRONT LEFT CAB STORAGE BOX - D9014 (10) - OPERATORS PLATFORM/CAB

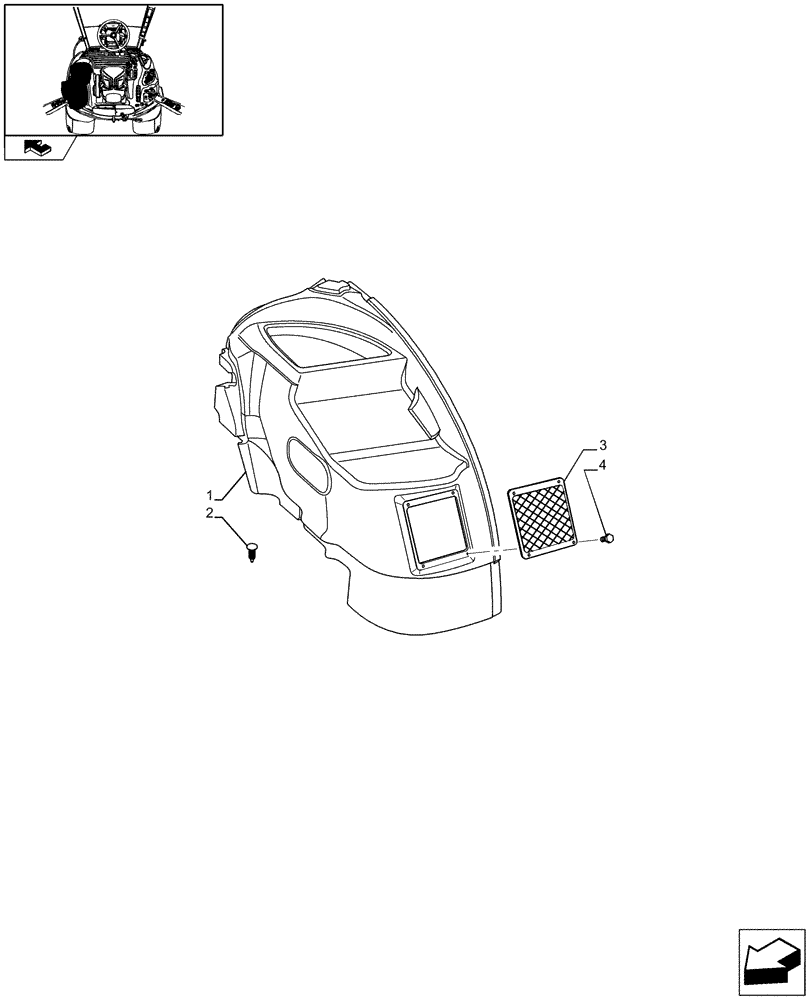

Схема запчастей Case IH PUMA 210 - (1.93.0/04[01A]) - (VAR.671) FRONT LEFT CAB STORAGE BOX - D9014 (10) - OPERATORS PLATFORM/CAB
home
1
2
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47389188

SOFT TRIM

LH

1шт.

Basildon Production Models Only

1шт.

1

84242772

SOFT TRIM

LH

1шт.

St. Valentin Production Models Only

1шт.

2

87539768

ANCHOR,Button Hd, 4.70 mm x 11.00 mm, Nylon

2шт.

3

84600304

NET

LH

1шт.

Basildon Production Models Only

1шт.

4

13271817

SCREW,Pozidriv Pan Hd, M4 x 8mm, Cl 5.8, Full Thd

4шт.
