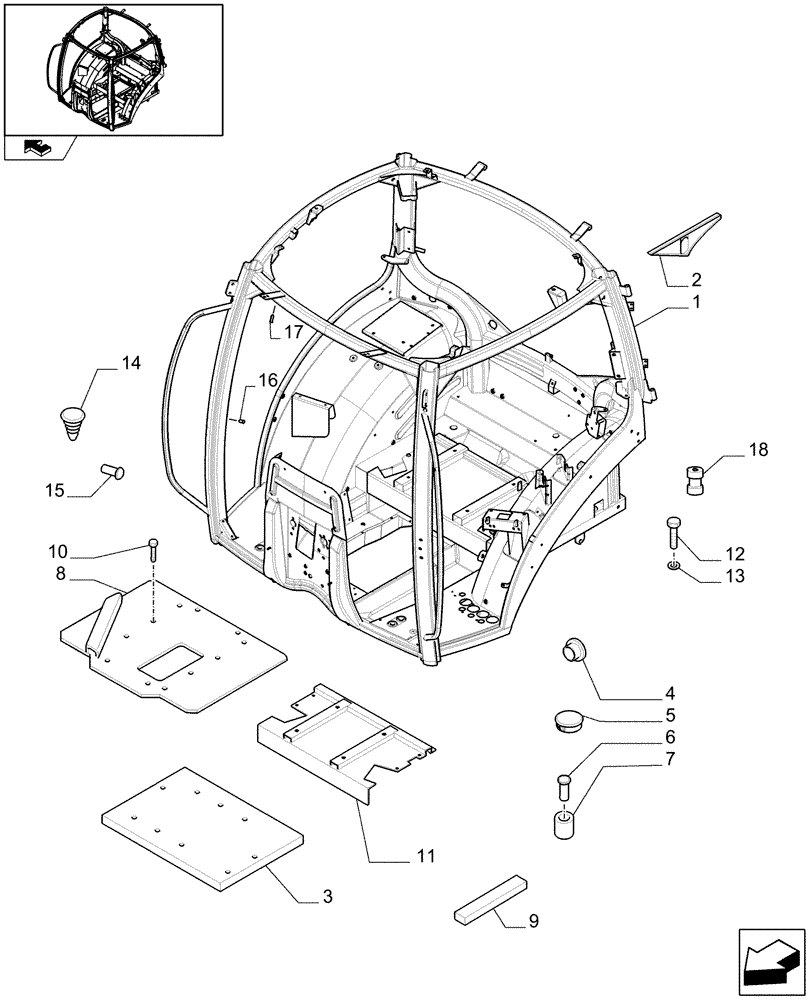

Запчасти Case IH PUMA 210 (1.92.1) - CAB FRAME (10) - OPERATORS PLATFORM/CAB

1

87706096

CAB BODY

ASSY

1шт.

1

87706098

FRAME

, Serial Range: -C9023

1шт.

With Mechanical Cab Suspension, VAR.635-043-052

1шт.

1

84574464

CAB BODY

CAB FRAME, ASSY, Start Serial: D9023

1шт.

With Mechanical Cab Suspension, VAR.635-043-052

1шт.

2

82036801

PLUG

Rear Window, RH

1шт.

2

82036800

PLUG

Rear Window, LH

1шт.

3

87686522

COVER ASSY

1шт.

4

82032838

PLUG,20.7mm ID x 25mm OD x 10.5mm Thk

D=20.7

2шт.

Black

1шт.

4

82003283

PLUG,10.5mm OD

D=20.7

8шт.

4

87341141

PLUG

3шт.

With Heated rear and Front Window with Wiper and Washer, Electrohydraulic; VAR.043-052

1шт.

With Mechanical Cab Suspension, VAR.635-043-052

1шт.

4

84234592

PLUG,M20.7 x 10.5mm

D=20.7

2шт.

Natural

1шт.

5

82031549

BLANK-OFF PLUG,35mm OD, Black

3шт.

6

82024991

NUT,M6

1шт.

6

82014551

NUT

M10 x 1.5 x 24.5, Rivet Type

3шт.

6

82024992

RIVET,Flng, 11mm OD x 19.5mm L

15шт.

6

82037658

RIVET,9mm OD x 4.5mm L

2шт.

6

82037720

RIVET,Plastic Snap, M3 x 4.50mm

2шт.

7

82027697

BUSHING,9.5mm ID x 18mm OD x 17mm L

8шт.

8

87686394

CAB FLOOR

1шт.

9

82000180

SEALING STRIP

1шт.

10

83929012

CAPTIVE WASHER SCREW,HWH, M6.3 x 1.8 x 20mm

17шт.

11

82033893

PLATE

1шт.

With Heated rear and Front Window with Wiper and Washer, Electrohydraulic; VAR.043-052

1шт.

With Mechanical Cab Suspension, VAR.635-043-052

1шт.

12

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

With Mechanical Cab Suspension, VAR.635-043-052

1шт.

With Heated rear and Front Window with Wiper and Washer, VAR.043-052

1шт.

13

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

6шт.

With Mechanical Cab Suspension, VAR.635-043-052

1шт.

With Heated rear and Front Window with Wiper and Washer, VAR.043-052

1шт.

14

87716701

PLUG,Blanking, Snap, 6.40mm Dia

3шт.

15

47756025

NUT,Round, M6, 15.11 Thd

RIVETED, M6 x 9.9 x 15mm Splined

2шт.

16

84214045

RIVET,Flat, M10 OD x 25.75mm L

3шт.

17

82024990

RIVET,Flng, 7mm OD x 16mm L

M5 x 17 L

2шт.

18

81865569

PLUG,Grommet automatic pick up

GROMMET

1шт.
