Запчасти Case IH PUMA 210 (1.90.2) - FOOT STEP (10) - OPERATORS PLATFORM/CAB

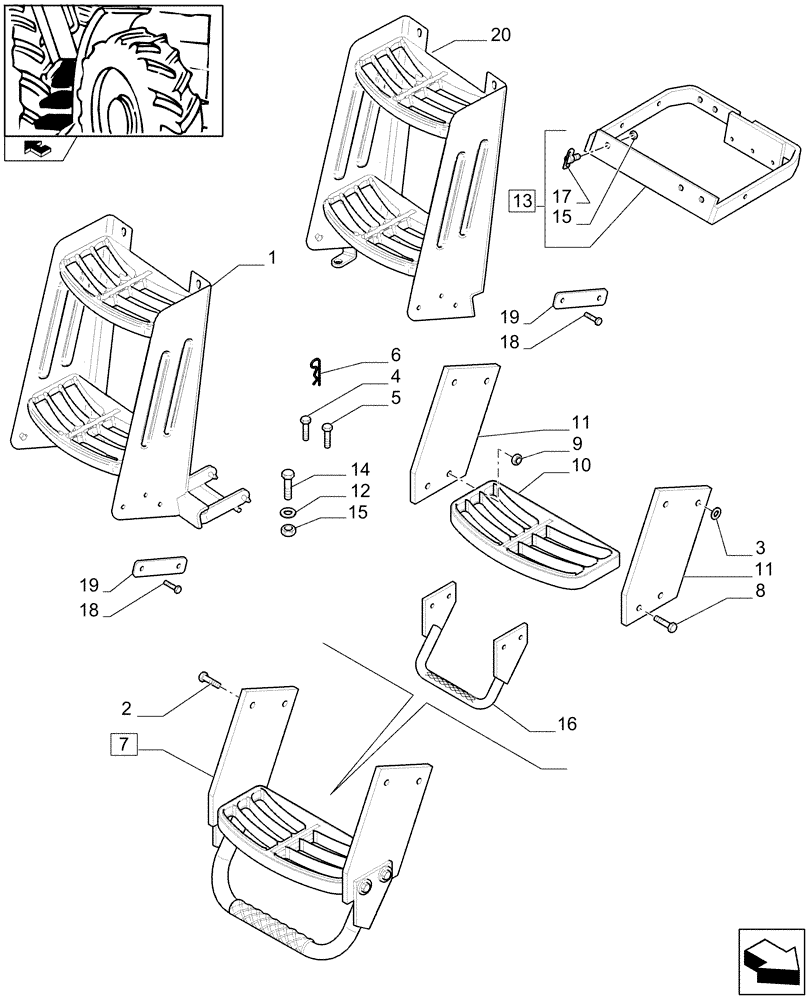

Схема запчастей Case IH PUMA 210 - (1.90.2) - FOOT STEP (10) - OPERATORS PLATFORM/CAB
9
7
16
4
2
15
11
1
17
12
6
19
18
10
14
home
3
15
8
19
20
13
18
5
11

Артикул

Название

Примечание

Количество

1

87483119

FOOT BOARD

RH, Serial Range: -C7144

1шт.

1

84476507

FOOT BOARD

RH, Start Serial: D7144

1шт.

2

11106234

BOLT,Hex, M10 x 1.5 x 25 mm, Cl 10.9, Full Thd

18шт.

3

12644304

WASHER,10.2mm ID x 35mm OD x 3mm Thk

16шт.

4

16044024

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

2шт.

5

16043834

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

3шт.

6

81865839

COTTER PIN

4шт.

7

87565407

FOOT BOARD

Incl.3, 8, 9, 10, 11, 16

2шт.

8

11107024

BOLT,Hex, M10 x 45mm, Cl 8.8

8шт.

9

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

8шт.

10

87371923

STEP

Rubber Step

2шт.

11

87565408

SUPPORT

4шт.

12

13578404

WASHER,8.15mm ID x 36mm OD x 2.5mm Thk

2шт.

13

87566675

RETAINER

1шт.

14

16043821

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

15

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

4шт.

16

87565423

FOOT BOARD

1шт.

17

87389066

FASTENER

2шт.

18

16040824

SCREW,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

, Start Serial: D7144

4шт.

19

84475630

MOUNTING PLATE

, Start Serial: D7144

2шт.

20

87483113

FOOT BOARD

LH, Serial Range: -C7144

1шт.

20

84476505

FOOT BOARD

LH, Start Serial: D7144

1шт.

Выбрано товаров: 22
